New megger 5KV megohmmeter model 210400

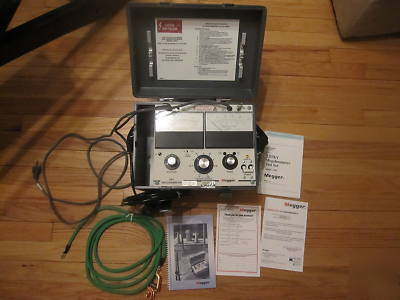

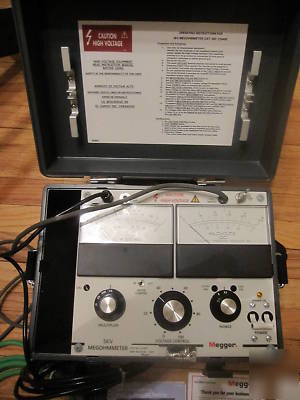

NEW Megger Megohmmeter Model 210400, 5000 V DC, 100,000 M Ohms
COLE-PARMER RETAIL PRICE $3,235.00
Provides 2% kV and M Ohm accuracy Guard terminal to eliminate surface leakage current from the measurement
Zero-start, high-voltage interlock
Shielded, high-voltage output cable permanently connected to the instrument
Redundant grounding connections
Easy-to-follow, color-coded meter scales
Analog metering for monitoring of variable measurements
Input Voltage - 120 Vac, 60 Hz
Test Voltage 0 to 5 kVdc, negative with respect to ground
Output Current - 5 mA continuous
Short-Circuit Current - 12 mA max
Kilovoltmeter - 4.5-in. (114-mm) taut band
Accuracy: 0.031 in. (0.08 cm) at any marking
Operating Temperature Range - 0 to 122F ( 17.7 to +50C)
