> Veriflyback lopt tester flyback dynamic tester
Veriflyback lopt tester flyback dynamic tester
VeriFlyback es un probador din mico de transformadores flyback, cuyo diagn stico acerca del estado del flyback bajo prueba, es presentado en su pantalla LCD retroiluminada en forma de texto, lo cual lo distingue de otros instrumentos del mercado que producen diagn sticos num ricos que obligan a la consulta del significado en una tabla impresa en un manual. Con este instrumento, s lo tiene que conectar el flyback a probar y leer en la pantalla LCD el diagn stico, estado del mismo y causa probable correspondiente, con la lectura del voltaje de Muy Alta Tensi n (MAT) que tendr a si estuviese conectado al equipo original.No tema por la aparente cantidad de cables y pinzas del instrumento: son s lo 4 (ventosa o chupete, +B, Colector, y masa o chasis), que en los primeros minutos de uso ya los tendr perfectamente identificados y aprendidos por sus inconfundibles colores. El resto del trabajo lo har VeriFlyback.
VeriFlyback sirve para probar flybacks de televisores y de monitores de PC, excit ndolos con su correspondiente frecuencia de barrido horizontal (15 o 32 KHz, seg n corresponda), de equipos con CRT (tubos de rayos cat dicos) de televisores con ngulos de 90 y 110 de deflexi n y de monitores de alta y baja resoluci n, configur ndolo f cilmente mediante su nico bot n CONFIG.
VeriFlyback aplica sobre el flyback bajo prueba un voltaje controlado de +B, monitoreando al mismo tiempo su estado, el nivel de corriente en el bobinado primario, el nivel de voltaje de Muy Alta Tensi n (MAT) proveniente de la ventosa (o "chupete") y la aparici n de pulsos esp reos durante la exploraci n o barrido horizontal, par metros que proporcionan la informaci n necesaria para emitir un diagn stico en la pantalla LCD. Si el flyback bajo an lisis no genera un voltaje de muy alta tensi n suficiente, si intenta bajar el voltaje de +B, si consume una elevada corriente de primario, o si deforma el pulso de barrido horizontal o genera pulsos anormales cuando se lo excita, el VeriFlyback lo notar y mostrar un mensaje de anomal a. Adicionalmente posee una salida para osciloscopio, el uso del cual es opcional, por si se desea observar las formas de onda producidas durante el an lisis.

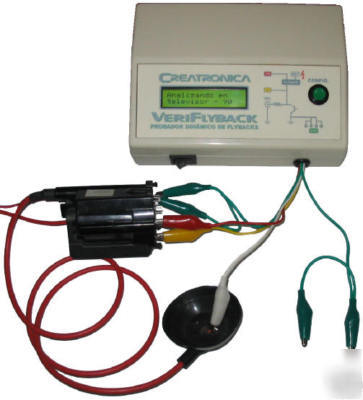

VeriFlyback is a dynamic tester flyback transformers, whose diagnosis about the state of the flyback under test, is presented in its backlit LCD screen in text form, which distinguishes it from other market instruments that produce numerical diagnostics require the consultation of meaning in a table printed in a manual. With this tool, you simply plug the flyback to try and read on the LCD screen diagnostic and status of the corresponding probable cause, with the voltage reading of Very High Voltage (EHV) than if you were connected to the original computer.No matter the apparent number of cables and clamps of the instrument, only 4 (suction cup or pacifier, + B, Collector, and body or chassis) that in the first minutes of use and will easily identified and learned by their distinctive colors. The rest will work VeriFlyback.
VeriFlyback serves to prove flybacks TVs and PC monitors, excited with their corresponding horizontal scanning frequency (15 or 32 KHz, as appropriate), equipment CRT (cathode ray tube) televisions with angles of 90 and 110 deflection and monitors high and low resolution, easily configured using its single button CONFIG.
VeriFlyback applied to the flyback under test a controlled voltage of + B, while monitoring his condition, the level of current in the primary winding, the voltage level of Very High Voltage (EHV) from the suction cup (or "dummy") and the appearance of spurious pulses during scanning or horizontal sweep, parameters that provide the information necessary to make a diagnosis on the LCD screen. If the flyback under analysis does not generate a voltage high enough voltage, if you try to lower the voltage + B, if you eat a high primary current, or distorts the horizontal scan pulse or pulses generated abnormal when it is excited, the VeriFlyback will notice and will display a message of abnormality. Also has an output for oscilloscope, the use of which is optional, if you want to observe the waveforms produced during the analysis.
VeriFlyback feeds on the home grid, as it has internally its own power supply. Do not forget to ask your VeriFlyback with the appropriate voltage for your country.
One (1) - VeriFlyBack Dynamic Tester
FlyBack on Picture is only a demo (Not Included)
