Sony color video printer up-1850MD monitor floppy drive
BELOW ARE SOME SPECS ON THE PRINTER AND THEN THE MONITER.

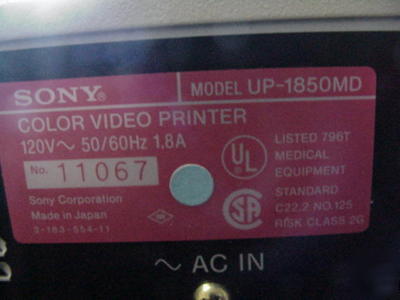

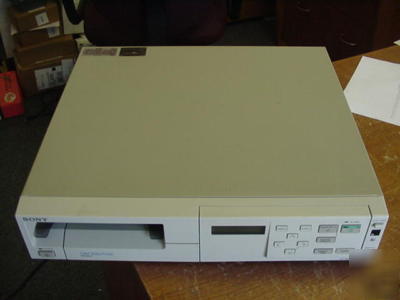

Color Video Printer. More than 500 lines of horizontal resolution.

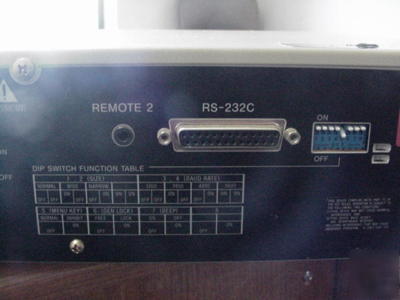

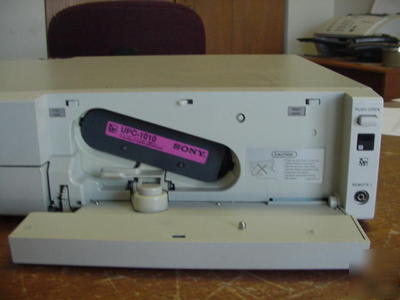

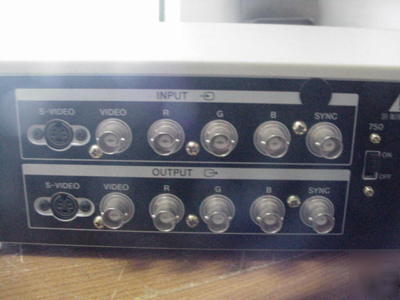

Color Video Printer more than 500 lines of horizontal resolution 8 bits (256 gradations) and over 16.7 million colors per dot hard copy prints in approx. 60 sec. one four or sixteen independent images per page printing paper size approx. 5 1/2" x 4" RGB Y/C composite video input/output front panel LCD display and on-monitor menu selection 100 print capacity RS-232C interface wired/wireless remote control wide-print mode capable UL APPOVED AND CSA.

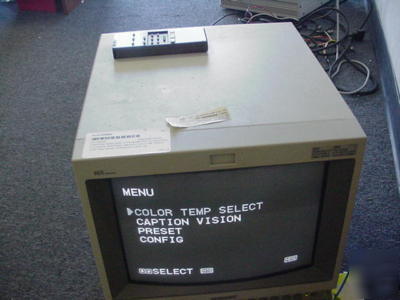

On-screen menu in five languagesKnob controls of Brightness Contrast Aperture Phase Chroma and VolumeIzzitOn( System provides visual recording confirmationRGB Split Screen (two RGB inputs)Analog RGB Y/C and composite video IN/OUT (loop-through) connectorsHigh Resolution 13" Trinitron picture tubeImproved frequency response (10.0 MHz RGB equivalent to 800 TVL)Splash-proof panels protect against liquidsFront Panel Cover prevents inadvertent operationThree scan modesRS-232C controlAutomatic selection of standard color systems: NTSC and PALUL-2601-1 ClassifiedThe underscan feature provides 5% underscan for a full view of the image edge-to-edge. Overscan provides 20% overscan of the images for a slightly magnified view.Located for easy viewing at the upper center of the monitor's bezel the Status Light illuminates to indicate that image recording is activated. For example the Status Light can be configured with the Sony SVO-9500MD S-VHS Videocassette Recorder/Player to indicate that recording is ongoing.Additionally the PVM 53 Series Status Light feature is compatible with any Sony device (recorder printer or storage unit) which incorporates a simple contact switch closure-type control option. Designated devices are those that offer the FS-20 Footswitch RM-81 or RM-91 Remote Control Units as optional accessories. Note that the SME-PVMSTATSVO cable is required to activate the Status Light.Detachable panels fit over the front panel area and at the vents located at the sides of the monitor to provide an easy-to-clean surface.Set Chrome Color Temperature Closed Caption or create customized parameter settings.Adjust image values via knob controls or set at detent for calibration with other monitors in the video systemView on-screen menu commands in English German French Italian or SpanishLoop-through provided for all video signals with signal type selectable from front panel. In addition two RGB input signals are provided.View two RGB input signals split top-half (RGB A) and bottom-half (RGB B) for comparison or color calibration.Provides EIA 525/60 or CCIR 625/50 (auto selectable) with worldwide signal acceptance versatility and multiple-system capability.Feed audio signal from audio output of a VCR or microphone (through an optional microphone amplifier).Color System: NTSC PALAperture correction: 0dB to <+->6.0dbFrequency response: LINE 9.0 MHz (-3dB)RGB 10.0 MHz (-3dB) (equivalent to 800 TV lines)Synchronization: AFC time constant 1.0 msec.Overscan: 20% overscan of CRT effective screen areaNormal scan: 7% overscan of CRT effective screen areaUnderscan: 5% underscan of CRT effective screen areaPicture Tube Resolution: 600 TV linesCRT: SMPTE-C phosphorColor temperature: 6500K/9300K/USER(3200K-10000K factory setting is 6500K)Maximum Diagonal viewable area: 13"Y/C IN: 4-pin mini DIN connectorVIDEO IN: BNC connector1V p-p <+->6dB sync negativeAUDIO IN: phonojack -5dBu more than 47kohmsR/R-YG/YB/B-Y IN: BNC connectorRGB channels: 0.7V p-p <+->6dBSync on green: 0.3 V p-p negative 75 ohms terminatedR-YB-Y channels: 0.7 V p-p<+->6dBY-channel: 0.7 V p-p <+->6dB(Standard color bar signal of 75% chrominance)EXT SYNC IN: BNC connectorComposite sync 4V p-p<+->6dB negativeY/C OUT: 4-pin mini DIN connectorVIDEO OUT: BNC connector 75 ohms terminatedAUDIO OUT: phonojack Output level 0.8WR/R-YG/YB/B-Y OUT: BNC connector 75 ohms terminatedEXT SYNC OUT: BNC connector 75 ohms terminatedREMOTE: 8-pin mini-DIN connectorRS-232C: 9-pin D-SUB connectorPower consumption: Approx. 90WPower requirements: 120V AC 50/60 HzOperating temperature: 0-35CStorage temperature: -10 to +40CHumidity: 0-90%Compliance: UL 2601-1 ClassifiedDimensions: Approx. 346x340x411.5mm (w/h/d)(13 5/8 x 13 1/2 x 16 1/4 inches) not including projecting parts and controlsWeight: Approx. 16.7kg (36lbs 14oz.)
