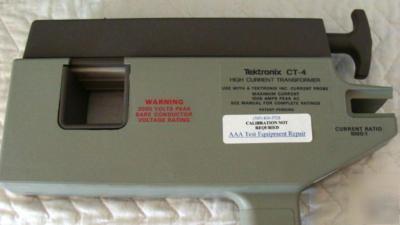

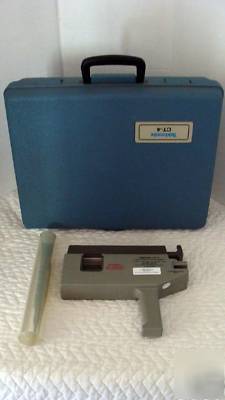

Tektronix ct-4 high-current transformer in case
The Tektronix CT4 is a robust clip-on high current transformer that extends the measurement capability of the A6302, A6302/XL, A6312, P6021, TCP0030, TCP202, TCP305 and TCP312 Tektronix current probes. The Tektronix CT4 has two receptacles which these current probes may clamp onto in either 20:1 or 1000:1 step-down ratios. AC current amplitudes to 20,000A may be measured provided the amp*second ratings are not exceeded.
The 1.5in square split-core opening on the CT4 makes it possible to clip onto large conductors without breaking the circuit under test. Insulated core and shield assemblies allow measurements on bare wires to 3000Vp (1000VRMS CAT III) and to 14kV when the high voltage bushing is used (included).
For more information from the Data sheet: http:// /pdf/Tektronix/tektronix-a6312-a6302-a6302xl-a6303-a6303xl-a6304xl-ct4-datasheet.pdf
