Rocker milling clamps sherline taig traditional 10-32

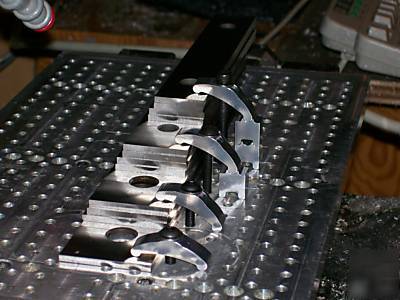

Set of 2 hold down clamps of a non-symmetrical, more traditional shape, 4 x 10 - 32 screws and 4 stainless washers. T-nuts are available separately if needed for $1.25 each (please check other items, or ask). More traditional shape gives higher auto adjustment capability without stacking blocks (0 to 1-1/8), but the trade-off is a slightly higher profile when holding thinner material. The button-head bolts low head design definitely helps keep this to a minimum though. This would be a great start, and then add stacking blocks later if you find you need the extra height, though 1-1/8" without the stacking blocks is nothing to sneeze at. These are extremely handy little clamps for holding work pieces down on a milling table, tooling plate or fixture. The self adjusting height is a real time/frustration saver. Optional range extender stacking blocks and longer screws are available (please check other items, or ask).

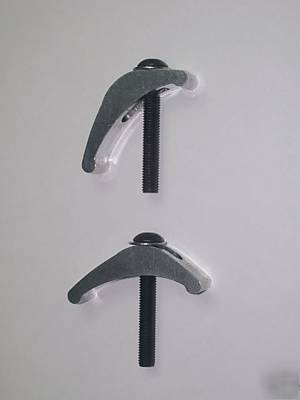

These are shaped slightly different (see 2nd photo) and they don't include the stacking blocks. Just like the more complete sets, their compactness make them especially ideal for machines with limited table or tooling plate surface area.
- up to 1-5/8" with one block per clamp (sold separately)
- comes with four 10 - 32 button-head cap-screws (two 1" and two 1-1/2" long)
8 - 32, 1/4" - 20 and 6mm sets also available (please check sellers other items or ask).
