Leviton built-in surge suppressor protector 240VAC
Leviton Built-In Surge Suppressor Protector 240VAC

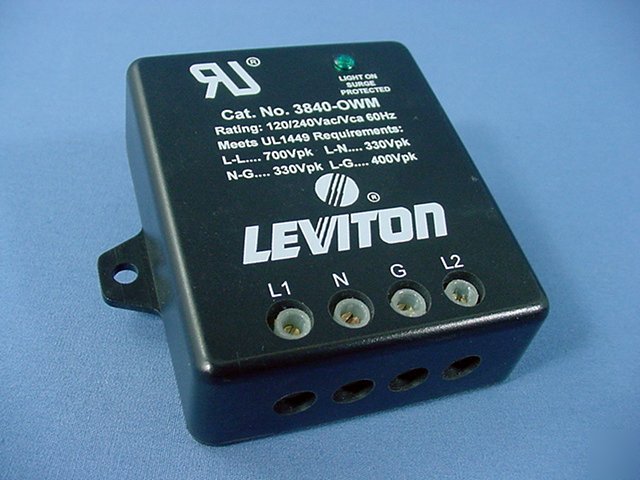

Leviton 3840-WM equipment cabinet surge suppressor with terminal block wiring hookup. Allows you to build surge suppression into your next project. Intended for use with sensitive electronic equipment and appliances with solid state circuitry that would benefit from protection against damage caused by transient surges. LED is ON when surge protection is operational. Features include:
* Rated line voltage: 240V (VRMS)
* Maximum continuous operating voltage: 250V
* Max. single-pulse transient current (8x20s, Amps peak): 1300A (L-N); 6500A (L-G); 6500A (N-G)
* Clamping performance per UL Standard 1449 permanently-wired test (8x20s, 3000A): 330V Peak (L-N); 400V Peak (L-G); 330V Peak (N-G)
* Rated single-pulse transient energy (10x1000s, impulse): 280 Joules
* Noise rejection @5kHz-5MHz: -35dB
