Hp agilent 798C directional coupler

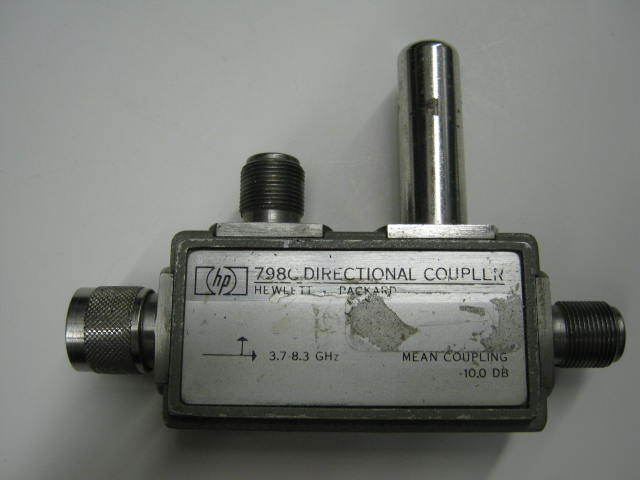

HP Agilent 798C Directional Coupler
The 798C Directional Coupler is a ultra-flat, high directivity coupler that is ideal for power-monitoring applications in coaxial systems. Output coupling (ratio of output power from main and auxiliary arms) is specified rather than a coupling factor. Thus, no correction factor is required to account for insertion loss in the main arm. 3.7 to 8.3GHz frequency range, 10 dB nominal coupler 0.3 dB. 20 dB minimum directivity. Type N(F/M) (primary line) and N(F) (auxiliary arm) connectors.
