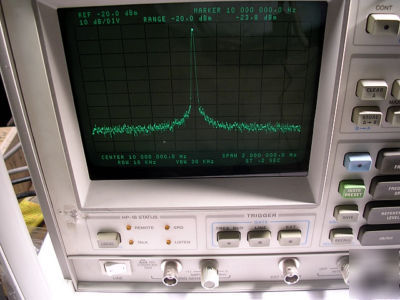

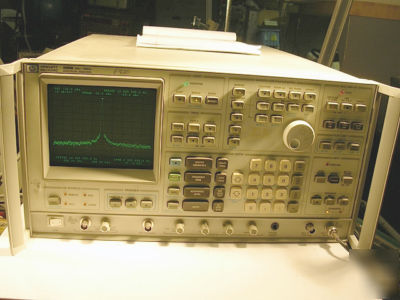

Hp/agilent 3585B spectrum analyzer, 20HZ-40MHZ tested
HP / Agilent 3585B, 20 Hz to 40 Mhz Spectrum Analyzer with 3 Hz resolution bw, -137 dBm to +30 dBm measurement range. 50 Ohm, 75 Ohm, and 1 Megohm selectable input impedance. Built-in tracking generator. CRT readout of panel settings & markers, digital storage, autoranging input attenuator. HP-IB with direct-plot capability. Sweep gating option 80 to 100 dB dynamic range, 0.25 dB typical level accuracy. 50 Ohm, and 75 Ohm, 1 mW inputs. 3 Hz resolution bandwidth Automatic limit testing 20 Hz to 40.1 MHz frequency range
Sharp 3 Hz resolution bandwidth
80 to 100 dB of spurious-free dynamic range
Ideal for signal analysis at the critical frequencies comprising voice, video, or digital information
Maintains integrity of data signals by delivering more measurement performance for high speed, high-density information processing systems
High accuracy, resolution, and dynamic range
Fully synthesized tuning (including sweeps) and typical amplitude accuracy to 0.25 dB ensure complete measurement confide http://cp.literature.agilent.com/litweb/pdf/03585-90017.pdf
GO TO THE ABOVE SITE FOR MANUAL.
THE UNIT HAS BEEN TESTED AND COMES WITH A DOMESTIC DOA WARRANTY. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING
