Carnel labs nm-65T radio interference analyzer/receiver

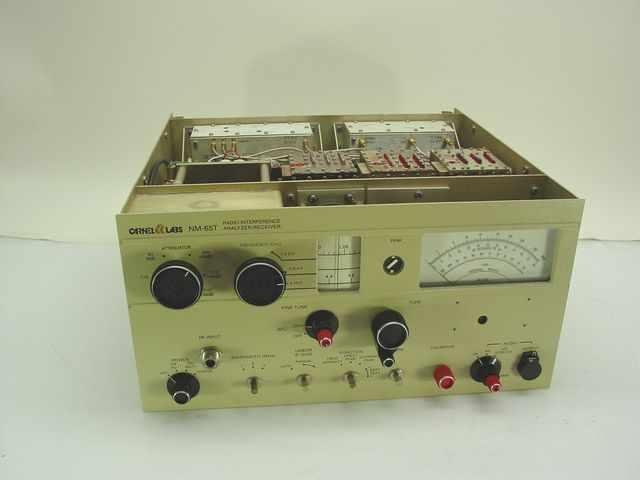

Carnel Labs NM-65T Radio Interference Analyzer/Receiver
* EMI receiver used for the measurement of conducted or radiated RF signals, within the frequency range of 1GHz to 10GHz in accordance with military and commercial EMI test specifications.
* Three IF bandwidths of 0.1, 1.0 and 10MHz utilizing a logarithmic IF amplifier which provides 60 dB dynamic amplitude display range on the panel meters.
* With three 20 dB attenuator steps, the overall measurement range is 120 dB, from 1 V to 1 V.
* An internal calibrator module enables standardizing the gain - assuring accurate amplitude measurements.
* Typical dynamic measurement range is -100 dBm to +13 dBm.
