4"union horiz table type boring mill, 51X57TBL, 6MT
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

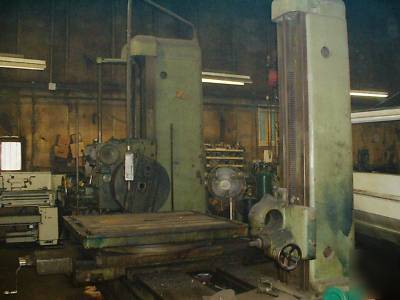

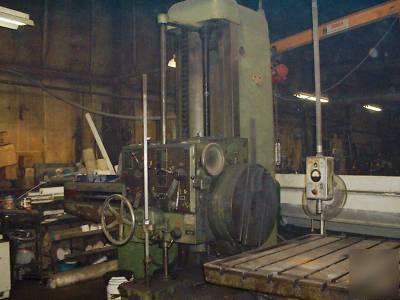

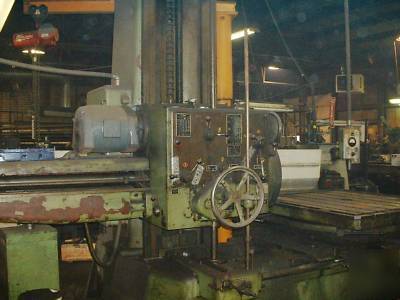

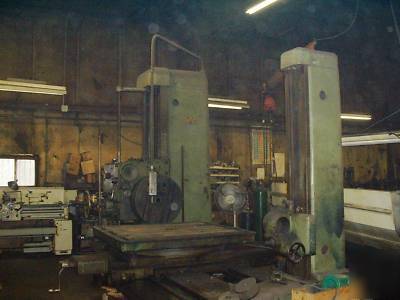

1-Used 4 Union Table Type Horizontal Boring Mill
Spindle Diameter........................................................... 4
Spindle Taper................................................................ 6MT
Spindle Speeds, 18 steps................................................ 5-500
Spindle Travel............................................................... 34
Spindle Feeds................................................................ .03-5 mm/rev
Table Size...................................................................... 51 x 57
Cross & Longitudinal Feeds........................................... .24-40 mm/rev
Rotary Table Rotation.................................................... 360
Cross Table Travel......................................................... 48
Longitudinal Travel, without support............................. 84
Longitudinal Travel, with support.................................. 70
Vertical Travel of Head................................................. 40
Facing Head Feeds......................................................... .24-40 mm/rev
Main Motor.................................................................... 9.2 Kw, 380/220V, 3 Ph
25 Facing Head, Outboard Support, Rotary Table, 10 6 Boring Bar, Box of Misc Tooling, Pendant Control
Price FOB, Orage City Ia........................................... $29,500.00
