1997 acer ultima ii cnc vertical mill w/anilam 1400M

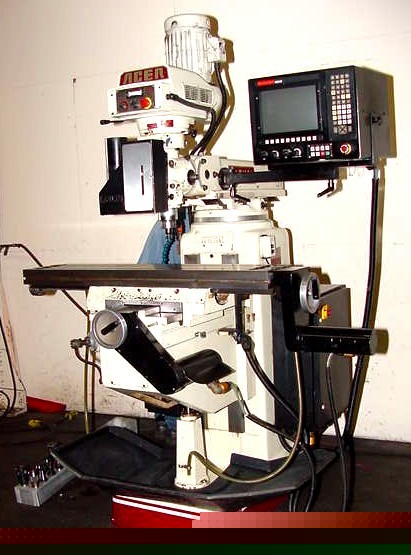

1997 ACER ULTIMA II CNC VERTICAL MILL w/ANILAM 1400M
MODEL:ULTIMAX II 3VKH S/N: 97050507, MFG: 1997
3-AXIS CNC PLUS MANUAL HANDWHEELS
TABLE SIZE....................... 10" x 50"
TABLE TRAVEL (X-AXIS)............ 26.5"
SADDLE TRAVEL (Y-AXIS)........... 14"
QUILL TRAVEL (Z-AXIS)............ 4.5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 20"
SPINDLE TAPER.................... #30 ERICKSON QUICK SWICH
SPINDLE SPEED RANGE.............. 60 - 4200 RPM
MAXIMUM LOAD DISTRIBUTED ........ 500 LBS.
FLOOR AREA (DOORS CLOSED)........ 8' x 7'3"
HEIGHT........................... 6'9"
WEIGHT (WITH CONTROL)............ 3,250 LBS.
3-AXIS CONTOURING CONVERSATIONAL & G-CODE
X, Y & Z BALLSCREWS AND SERVO MOTORS
CONTROL ACTS AS 3-AXIS DRO IN MANUAL MODE
YASKAWA PC INVERTER FOR SPINDLE CONTROL
BALDOR SUPER "E" 3 HP SPINDLE MOTOR
TRANSITION FROM THREE AXIS CNC TO MANUAL MACHINING
PERFECT FOR A TOOLROOM OR PROTO TYPE WORK
