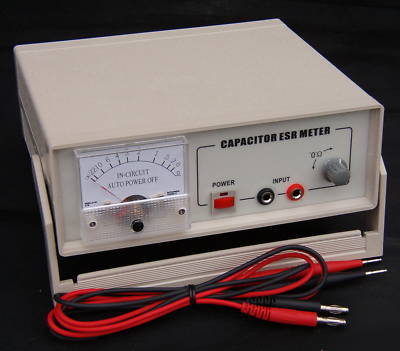

In-circuit esr meter (desktop esr cap tester)
THIS IN-CIRCUIT CAPACITOR ESR METER IS SPECIALLY DESIGNED TO MEASURE ESR(EQUIVALENT SERIES RESISTANCE) ON CAPACITORS IN THE RANGE OF 0.1UF OR LARGER, IN OR OUT OF CIRCUIT. THE ABILITY TO TROUBLE SHOOT IN-CIRCUIT SAVES TIME.
IN THE PAST, LCR METER WERE USED TO TEST THE VALUE OF A CAPACITOR AND TESTING IT OUT OF CIRCUIT, THESE METERS WILL INDICATE THAT A BAD CAPACITOR IS GOOD. BECAUSE IT ONLY MEASURES ITS CAPACITANCE VALUE AND A BAD CAPACITOR CAN STILL STORE THE CORRECT AMOUNT OF CHARGE WHEN IT IS TESTED BY A LCR METE. CAPACITOR ESR METER CAN QUICKLY DETERMINE IT' S ESR VALUE, LETTING YOU KNOW RIGHT AWAY IF A CAPACITOR IS GOOD OR BAD.BY PERFORMING THIS TEST IN-CIRCUIT BOARD REDUCING THE AMOUNT OF TIME NORMALLY SPENT ON TROUBLE SHOOTING.
* MEASURES ERS WITH A RANGE OF 0 TO 22
* DIMENSIOND: 210 X 185 X 78 MM
* WEIGHT: 0.65 KG (NOT INCLUDING BATTERIES)
