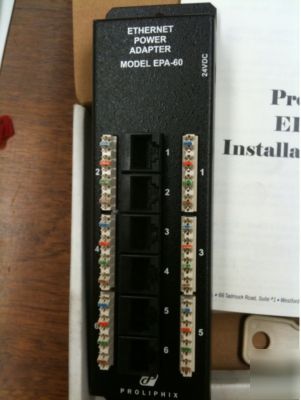

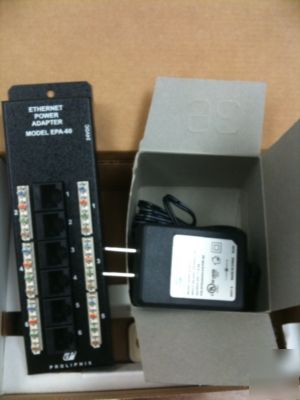

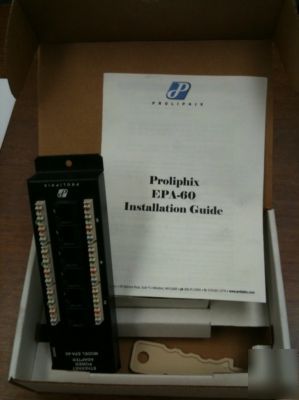

Proliphix 6 port ethernet power adapter epa-60
This power adapter is used to provide 24Vdc power to either the NT10e or NT20e Network Thermostat. Over Cat5, Cat5e or Cat6 cable, you can power up to six Proliphix thermostats with this unit.
The EPA-60 is installed near the network equipment and at the point of termination of the Cat5 cables wired to each Network Thermostat. For each thermostat, there are two cable terminations on the EPA; one which provides data connectivity and power to the thermostat and the other which provides data connectivity only to the network equipment. For each thermostat, these two terminations are bridged to one another on the EPA to provide flow-thru data connectivity from the thermostat to the network equipment or network equipment to the thermostat. Power to each thermostat is isolated from the network equipment which may include hubs, switches and routers.
* Powers multiple network thermostats
Each thermostat Cat5 cable is punched down to the 110 block on the EPA designated for that thermostat. Associated with each 110 punch down block (for each thermostat), is a standard RJ45 Ethernet jack which supports patch-cable data connectivity from the thermostat to the network equipment.
