Omp (dake) 14" ferrous-type automatic cold saw '99

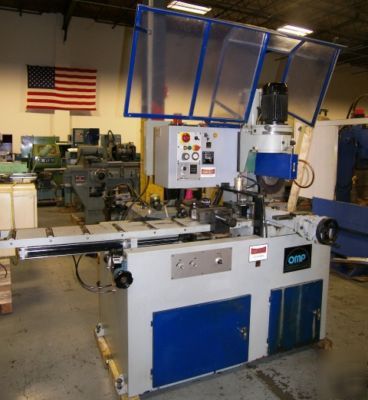

Preowned 14" OMP (DAKE) Ferrous-Type Automatic Cold Saw, Model: Euromatic 370PP, S/N 3799 (New 1999)
Minimum/Maximum blade thickness
Semi-automatic or fully automatic cutting mode of operation
Air over hydraulic head feed system with down feed regulator allowing control of the
the head feed pressure for cutting tubes and structural steel at a faster
rate. This regulator will also allow control of the head return rate making for
Head rotates 45 right of center for miter cutting and up to 90 left of center for miter
Pneumatically actuated automatic feed with multiple indexing capability (0 to 99
individual indexes - simple electronic programming with function LED)
Piece counter to allow number of pieces to be cut with automatic saw shut-off at end of
Pneumatically actuated automatic clamping vise with adjustable gib guides, removable
face plates, and an anti-burr arm
Pneumatically operated self-adjusting gripper-type feeder vise
Feeder Vise handwheel with analog length counter
Adjustable forward/reverse speed control of feeder vise
Pneumatically operated vertical hold down vise to assist in bundle cutting
Electronic amp meter with automatic shut off of saw if the meter shows a reading above
the pre-set limit determined by the operator
Two removable wear plates on the table to support longer length cuts
Three gib guides for the cutting head with two adjustable cast iron gib blocks in each
for increased accuracy and easy adjustment
Self-adjusting metal chip brush
Clear acrylic hood enclosure with electrical interlock
(1) Section of 78" L x 13" W x 53" H live roller conveyor table
1" Thick hardened ways with manual oiler
Operation, Electrical & Parts manuals
Self-contained coolant system with 1/3 H.P. pump motor
3.5/4.5 H.P. 3/60/220 volt two-speed blade drive motor and electrical controls
Approximate Dimensions (Machine Only):
