60 mhz handheld scopemeter oscilloscope with dmm

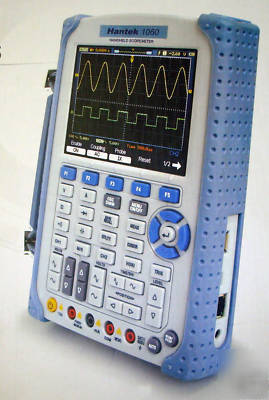

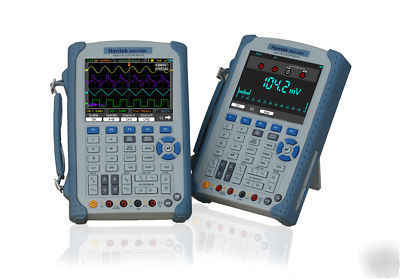

HandHeld Scopemeter/Oscilloscope DSO1060
* 60MHz Handheld Digital Scopemeter with integrated Digital Multimeter Support
* 60MHz Bandwidth with 2 Channels
* 150MSa/s Real-Time Sampling Rate
* 50Gsa/s Equivalent-Time Sampling Rate
* 6,000-Count DMM resolution with AC/DC at 600V/800V, 10A
* Large 5.7 inch TFT Color LCD Display

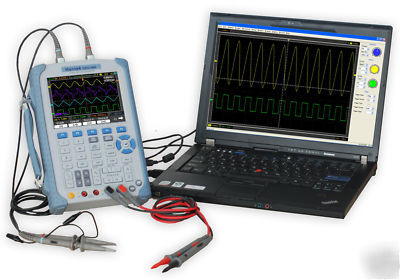

* USB Host/Device 2.0 full-speed interface connectivity
* Battery Power Operation (Installed)
* One Year Warranty Against Factory Defects!
Resistance: 1M ; Capacitance: 15 pF
32k at Single Channel, 16k at Dual Channel
Edge, Pulse Width, Alternative

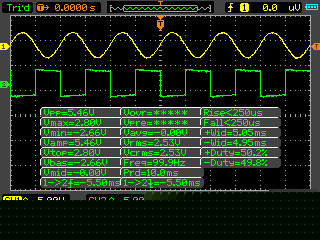

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Delay time from ch1 rising edge to ch2 rising edge
Delay time from ch1 falling edge to ch2 falling edge
Manual, Track, Auto Measure Modes
CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert

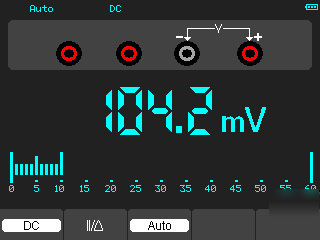

Voltage, Current, Resistance, Capacitance,Diode & Continuity
5.7 Inch with LED Backlight Display
240 (Vertical) x 320 (Horizontal) Dots
USB Host / Device 2.0 Full Speed Supported
AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA
Oscilloscope and Multimeter Independence
For Technical Support Contact Circuit Specialists at (***)-528-1417
