4CH 60FPS dvr card w/ 2PCS 36 ir leds cameras 20M cable

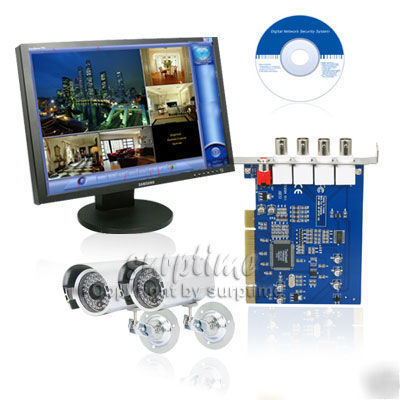

4 Channels Security CCTV DVR Card Surveillance System, 60fps and 2PCS 1/4inch Sharp Chip, 420 TV Line, 36 LED Security CCTV Wired CCD Color Camera and 2PCS 20m Power / Video All in One Cable and AC/DC Adapter (TE-6804E-2CAM2)
PAL:1/50~1/100000S NTSC:1/60~1/100000S
Base on 1/4" SHARP COLOR CCD sensor.
Economical Solution, includes Board Lens.
High sensitivity, low smear, excellent anti-blooming, and high S/N ratio.
Plug & Play. Installs easily and is suitable DIY (Do It by Yourself).
Built-in an Infrared Illuminant to assist for cameras in low illumination environment.
Have small volume, lightweight, high integrative level, easy and convenient to fix and use.
Long life luminary with using special wavelength Infrared LED.
Suitable for surveillance of supermarket, mall, shop, resident area, bar and so on.
160X120 / 240X180 / 320X240 / 352X288 / 480X360 / 640X480
Chipset:TW6802, 10-bit ADC with 4H comb filter.
Display Screen:1 / 4 / 6 / 9 / 10 / 13 / 16 / 25 / 32 / Full Screen.
Color Adjust: Adjustable Light, Contrast, Hue, Saturation by Individual Camera.
Record Mode: Continuous / Schedule Recording / Alarm Triggering
Compression: Enhanced MPEG4 / H.264 Format, Frame Size: .1K~2.5K.
Multi-task: Monitoring / Recording / PTZ Control / Remote / Backup.
Motion Detect:16 Zone X Multi Area for each camera.
Storage: HDD / VDRAM / CD-RW / DAT / MO / ZIP / RAID. Up to 24 drives.
PTZ: RS422 / RS485 Controlled PTZ & Light / Power / Wiper.
Playback Speed: Forward / Back / Step / Fast 1X,2X,4x,8X / Slow 1X,1/2 X,1/4 X,1/8X.
User Right: Multi User with Personal User name/Password/User rights, Remote Users.
Water Mark: Water Mark , Not Editable & Not Replaceable.
Network: PSTN / ISDN / LAN / ADSL / Internet.
Remote Control: Full Function Remote Control & Remote Audio Transmission .
Remote Rec: Remote Playback, Remote Recording, & Emergency Recording.
Speed dome: Pelco-D / Pelco-P Protocols & Sequence.
E-map: electronic map that lays out the location of video camera (At Server)/ lays out the location of Server (At Client).
Display Mask: Support Camera mask (Just not show on Screen), Password to Playback Recording Files.
Duplex Voice: Server & Client can talk by microphone.
Alarm I/O port: Support 6 ch Alarm signal input & 4 ch Relay output.
TV OUT: All channels video can be switched to Monitor or TV.
1 x MPEG4/H.264 4CH Software Compression Card
2 x 1/4" Sharp Chip Security CCTV Wired CCD Color Camera
2 x 20m Power / Video All in One Cable
