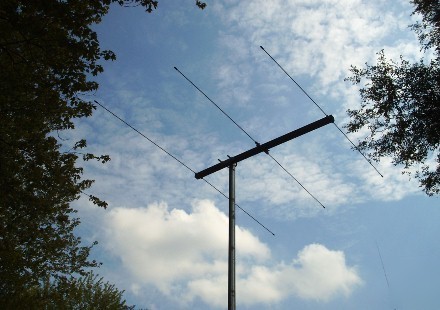

Yagi beam base antenna... 2 meter, 2M, murs, portable
New 3 element Yagi base or portable antenna. Up to 6.3 dBi gain.
Two Meter (144-148 Mhz) or MURS (150-156 Mhz).
Also available for 220-225 MHz (1.25 Meter)
The field proven design is easy to set up, is SWR tuneable and delivers outstanding results.
Can be horizontally or vertically polarized, see charts below.
Uses standard 50 ohm coax with ring terminals. Can be used with or without a choke or balun.
No special coax connector is needed, terminals and instructions are included.
Heavy Duty, weatherproof construction: Non-conductive boom is machined from UV resistant solid PVC bar.
Element mounts are machined from 3/8" aluminum barstock and attached to the boom with stainless steel hardware.
Wire elements are 3/32" Stainless Spring Steel. Clamping hardware is plated steel and allows the antenna to be
mounted to tube, conduit or pipe masts up to 1.5" in diameter.
Be sure to visit the Centerfire Antenna website!
TURNING RADIUS: Horizontal...25" Vertical...20".
Use for 144 - 148 Mhz, 2m SSB, 2 Meter Ham radio, or Packet Radio or
we can trim this antenna for MURS VHF radio, 150-156 Mhz, SWR will be similar to the chart below.
Quick assembly and knockdown makes this a great antenna for portable or emergency use.
GREAT SCANNER ANTENNA!!!....excellent for railroad, aircraft, police and other VHF signals.
"Great service A+++ works on 2mtr with a vswr under 1.3-1.1"
"Excellent antenna - Very well made - Works well - A good value for the money"
"got antenna it-s up ,,, got repeater for the first time with 30 mw...."
"ANTENNA WORKS LIKE GANGBUSTERS - NICE ENGINEERING AND QUICK DELIVERY...."
"..the beam works GREAT made 2 meter ssb contact a 175 mile away with 1 watt of power. THIS WAS AWESOME!!!!!"
filter settings prior to contacting us. Thanks
................................
Made in the U.S.A. by CENTERFIRE Antenna.
