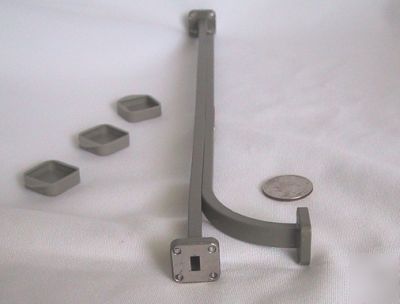

Waveguide hp R752A 3DB directional coupler WR28 26-40GZ
HP- Agilent Waveguide HP R752A
3 dB Directional Coupler 26.5-40 GHz
* HP- Agilent Waveguide HP R752A
* 3 dB Directional Coupler WR28 26.5-40GHz
* Manufacturers data shown below for reference:
* Coupling: 20 dB +/- 0.7 dB
* Coupling Variation: +/- 0.5 dB max

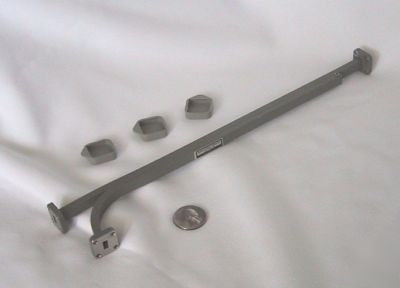

* Condition: Used. Used a few times. Slight bend in waveguide in mainline output line after separating from coupled line. I've seen this before and it does not affect performance. Photo #2 shows the slight bend on the near end.
* Cosmetics: One 1 inch long scratch and several very small paint chips on the edge of the waveguide.
