New " " 42' long gooseneck bbq smoker concession trailer
As one of the largest American concession sellers/manufacturers in the country, we have to make sure value is a standard feature. The list of Wells Cargo construction features is a starting point for comparisons, but reputation is the best guide in the long run and they have been doing it better for over 50 years.
Day after day, event after event, year after year, our models are built to go the distance...and then some! Extra attention has been given to assure the highest performance and longest service life. Our chassis and frame designs are the envy of the industry. Wells Cargo literally has thousands of trailers still in service after 20+ years...that's more years than most of our competition has been in business! Our SmartFrame Technology begins with the understanding that the frame, although not very glamorous, is the true source of a trailer's durability. Without a solid foundation, a steel structured foundation, everything else is just for show. Our SmartFrame Technology approach to trailer design along with many other exclusive features will assure your Wells Cargo to OUTPERFORM ANY TRAILER ON THE MARKET! We encourage you to compare!
Tubular Steel Main Rail Chassis - The heavy duty tubular steel main rail used by Wells Cargo is more rigid and less likely to flex compared to "I-Beam" construction offered by other brands. Our full height steel cross members, end rails, and outriggers assure you get the strongest construction on the market.
Take a close look at this BBQ Concession and compare with others and you'll clearly see the difference.

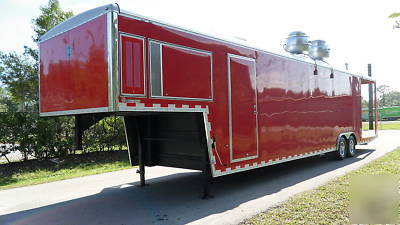

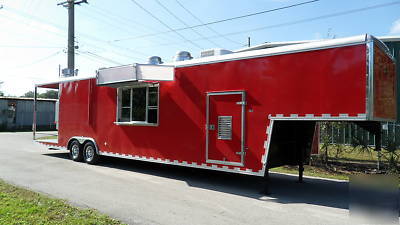

* 8.5' wide x 42' long Wide Body Compac Van (Gooseneck) Wells Cargo Porch Concession Trailer, model CVG4225W

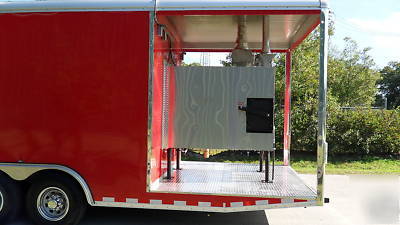

* Rear 7' to be open to create a porch
* Pair of rear heavy duty scissor type stabilizer jacks - 5000 lb static load capacity
* Reverse beavertail for additional ground clearance (frame tapers up in rear 4')
* 2 5/16" adjustable ball coupler hitch
* Tamdem two speed landing gear assembly
* 8" x 3" rectangular steel tube main rails with equal height 'C' section cross members with square outriggers and steel side plates
* Two 7000 LB, 102" wide 10 degree up Torflex axles with 12" x 2" electric brakes, E/Z lube and 8 on 6.5 hubs and drums with Wells Cargo weather resistant wiring
* Four ST235/80R16 load range 'D' radial tires mounted on an 8 bolt electro deposition coated silver spoke wheels
* 8' inside height, 90 3/4" veritcal posts on 16" center in rear 32' of trailer
* Install 2 1/2" deep wall posts on rear wall
* Cut out and frame rear wall for smoker
* Install 6 ea. sections of 3" 'C' channels and reinforce roof bows/sidewall for 152" long hood system with two grease extracting exhaust fans (hood installed on R/S)
* 36" pre-framed roadside entry door with screen, left handed hinge with flush lock and integrated dead bolt - aluminum exterior with white smooth fiberglass interior
* Hinged vented access door for propane storage compartment with right hand hinge

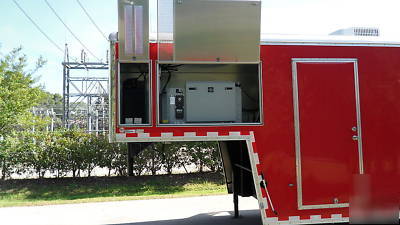

* Steel lined geneator compartment with separate compartment for diesel fuel tank, separate vented generator and fuel compartment doors and 22 gallon diesel fuel tank installed in step up section on roadside
* One type 'F' curbside lockable lift up awning with 16" high sign built to match concession window
* Pair of 150# power assist gas awning rods to raise and secure sign type curbside awning in upright position
* Two sign boards to place between awning installed at a diagonal at each end of awning
* 16" high Plexiglas panels to cover awning sign and sign boards for backlighting
* 3/4" exterior grade plywood floor, exterior surface undercoated, interior surface painted gray - install 3/4" wolmanized plywood floor on rear 7' porch
* Aluminum diamond tread plate over standard plywood floor - install from step up wall to rear, includes lining floor on porch area
* 3/8" white vinyl plywood interior sidewall liner - install from step up wall to rear wall (standard 3/8" wall liner in step up section)
* Full width ceiling lined with 1/4" white vinyl covered plywood contoured to roof radius (includes lining end caps) - install from step up wall to rear wall
* Mill finished aluminum ceiling liner installed in rear 7' porch area
* Laminated permanent inside counter, color white - built 12" wide x 30" long x 36" high on curbside starting at rear wall and extending forward
* 8" deep x approx. 69" long hinged exterior fold down aluminum counter
* 24" deep x approx. 80" long x 30" high base cabinet with laminated front and top, one inside shelf and latching cabinet doors - color; white - install along curbside wall
* 12" deep white interior overhead plastic storage tray along curbside wall above C/S concession window
* Full width partition wall to separate neck from interior of concession complete with 30" wide locking cabinet type access door centered on wall
* 18" high x 16" deep x approx. 80" long overhead cabinet installed on curbside to match lenght of sink assembly

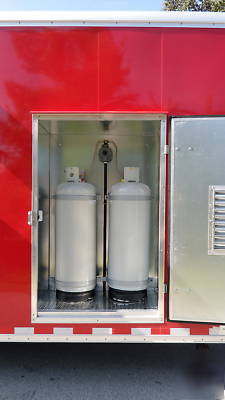

* Interior propane tank compartment for two 100# LP tanks lined inside with galvanized steel - installed on curbside wall starting at step up
* Two each 100# propane tank brackets installed inside LP storage compartment
* Two 100# propane tanks with regulators
* Above floor battery box assembly - consists of 100 amp hour deep cycle battery, vented battery box and 6 circuit fuse panel - started battery for generator - install inside of generator compartment
* 50 amp, 120/240v 16 circuit service panel with 50 amp main breaker, 25' shoreline power cord and round plastic cable hatch installed in step up section near generator
* Six 15 amp, 120v duplex wall receptacles
* One 15 amp, GFI 120v duplex wall receptacle
* One exterior 15 amp, 120v GFI duplex receptacle (weather proof) surface mounted on porch along curbside
* Interiro wall switches for 120v electric - 1 for interior fluorescents, 1 for exterior flood lights and 1 for backlighting for awning sign
* Five - 4' double fluorescent light fixtures with diffuser covers (bulbs not included)
* One 6' single exterior backlight fluorescent light fixture with tube and shield centered above C/S awning
* 1 to 5 light transformer for exterior backlight fluorescent fixture
* Two exterior weatherproof single swivel flood light fixtures on GFI breakers installed on rear porch wall at R/S and C/S corners
* Incandescent pull chain light fixture centered in step up section
* 50 amp manual transfer receptacle installed near panel box
* Two 120v, 13500 BTU roof mounted air conditioners

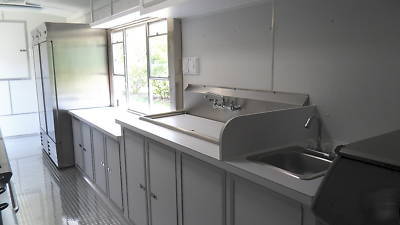

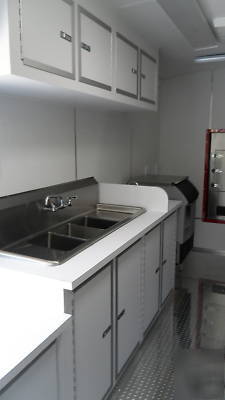

* Fully enclosed NSF APPROVED commercial stainless steel 3 compartment sink with single faucet and integrated drain boards on each side (bowl size 10"x14"x12")
* 50 gallon fresh water tank located under the sink assembly (concealed in cabinet enclosure for a more clean and professional look)
* Two 34 gallon waste water holding tanks plumbed together (total capacity 68 gallons) located under the trailer lower and away from fresh water tank per regulatory requirements
* .030 pre-finished RED smooth exterior aluminum BONDED vertically
* Front and rear bright anodized aluminum corner covers
* Two 14" x 14" screened translucent roof vents with crank
* Install 152" long NSF approved commercial hood and grease extracting exhaust fan along R/S, includes on/off switch for exhaust fan
* L.E.D. wraparound tail light with integrated side rear maker light
* Wells Cargo L.E.D. safety package, consists of L.E.D. clearance lights in place of standard clearance lights. Clearance lights on rear roof cap used as high profile brake light and side mounted clearance lights used as turn indicators
* 12v electrical pigtail with seven way connector
* Four 8 bolt chrome ABS hub covers
* Four 16" chrome ABS trim rings
* D.O.T. required conspicuity tape installed on both sides and rear of trailer
* Installed 12kw Kubota Quiet Model Diesel generator and interior remote start

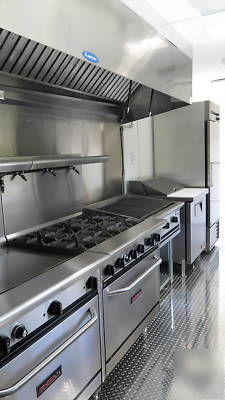

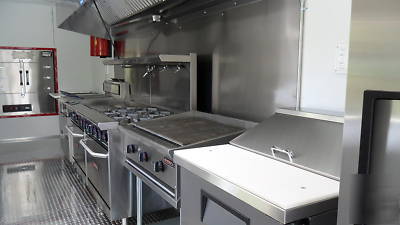

* NSF APPROVED 152" long commercial hood system with two grease extracting exhaust fans (includes state approved fire suppression system)

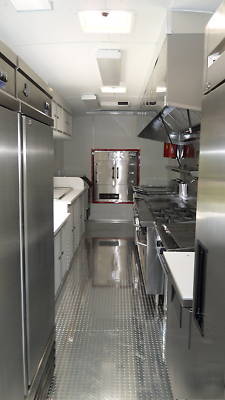

* NSF APPROVED commercial stainless steel 23 cu. ft. stand up refrigerator
* NSF APPROVED commercial stainless steel 23 cu. ft. stand up freezer
* NSF APPROVED commercial stainless steel 23 cu. ft. stand up hot holding cabinet
* NSF APPROVED commercial single door stainless steel 6.5 cu. ft. refrigerated prep unit with 8 top pans

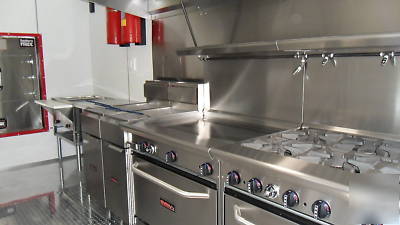

* Two NSF APPROVED commercial LP fryers with two baskets each
* NSF APPROVED commercial LP oven with 36" griddle top
* NSF APPROVED commercial LP 36" lava rock char broiler
* NSF APPROVED commercial 36" stainless steel equipment stand with an adjustable underneath shelf for char
* NSF APPROVED commercial LP 6 burner range with full oven
* NSF APPROVED commercial LP 2 well steam table (spillage pans and inserts not included)
* NSF APPROVED commercial electric ice maker by Ice O Matic
* NSF APPROVED commercial 24" stainless steel work top table with an underneath shelf

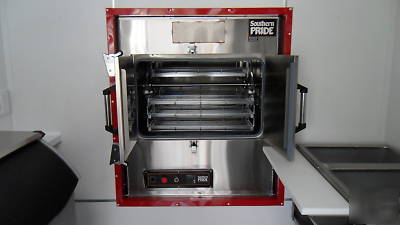

* Southern Pride SPX 300 smoker including extractor, separate commercial exhaust fan and flue
* 152" long stainless steel backsplash behind the cooking equipment
* 12kw Kubota quiet model commercial diesel generator
* LP service for cooking equipment and smoker (turn-key, just add propane)
Superior Frame Construction A Wells Cargo frame is a product of the industrys best engineering and designed to provide over 15 years of daily service. Heavy-duty tubular steel main rails and full height C-channel crossmembers deliver commercial grade durability. Radius steel corner posts, front and rear, extend to the bottom of the frame providing the maximum welding surface possible. End rails and corner posts welded together both horizontally and vertically and gusseted for long lasting durability.
Corrosion Preventive Measures Helping to thwart the damaging effects of rust, every Wells Cargo chassis is protected with a laboratory tested, Corrosion Prventative Compound (CPC). All exposed steel is painted with a state of the art process including both a primer and urethane topcoat for a smooth, long lasting finish. Also, a special corrosion resistant barrier is applied between the steel frame and exterior aluminum skin to prevent electrolysis.
We have a proven track record with local/county/state govermental agencies as well as foreign governments along with nationally advertised franchises, concessionaires, cafes and other fine food service establishments.
We'll provide you with a "Bill of Sale" and "Certificate of Origin" (Title) in your name or company name. It's also important to verify the manufacturer/builder is licensed. You want to make sure you'll have plenty of trouble free service from your concession...you don't want have problems down the road.
We only require a 40% deposit for this concession. We don't need over 60% of your money up front to build your concession like others do! The balance would be due upon pick up/delivery. Please allow 30 days from the time we receive your deposit for this concession to be built.
Please Note: This is a pre-sale item.
