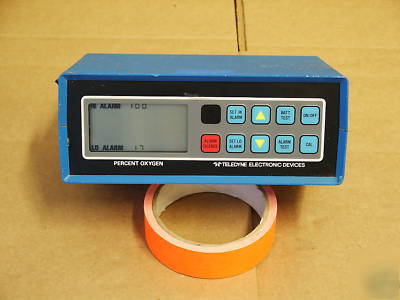

Teledyne ted 200T oxygen monitor
(only includes unit as pictured)
The Teledyne Electronics Technologies 200-T Portable Oxygen Monitor is an
easy-to-use, portable instrument that provides fast and accurate oxygen monitoring
and audio/visual alarm capability. The TED 200-T is designed to monitor up to 100 %
oxygen concentration in medical gas mixtures. Because it is microprocessor-based,
the TED 200-T has a unique combination of features and is very easy to use through a
touch panel designed for minimal operator interface.
The TED 200-T is designed to be used for monitoring oxygen concentrations in a
variety of medical gas mixtures. This instrument should
monitoring device. It is recommended that the instrument
to verify the concentration of oxygen in gas mixtures prepared
using a gas blender, anesthesia gas machine, or similar apparatus.
+2% of full scale (at constant temperature)
90% in less than 8 seconds (typically 6-8 seconds at 25 C)
Digital LCD with battery-life indication
Approximately 1,000 hr. continuous use in a non-alarm
7" W 5" D 2-1/2" H (178 mm 127 mm 63.5 mm)
Less than 2 lb (Less than 1 kg)
Retracted: 2 ft / Extended: 10 ft
10-30 C continuous, 0-50 intermittent C
Less than 1% O2 over an 8 hour period at constant pressure
2 level alarm ranges: Hi alarm: 18 to 100 Percent
2 level alarm accuracy: Alarm thresholds digitally stored and alarm effectivity is
digitally compared against the value calculated by the
microprocessor. Hence, the accuracy of the alarms is the
same as the accuracy of the unit as specified above.
