Smt to dip adaptors tssop-8 to dip-8 converter smd, #16
MSOP-8 / TSOP-8 / SSOP-8 / PSOP-8
to DIP-8 direct-to-socket converter
Breadboard and experiment with SMT parts

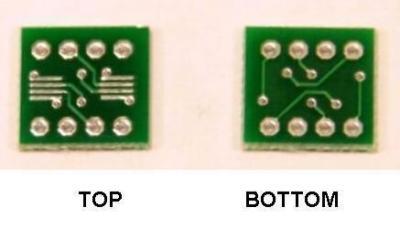

This listing is for style #16, shown below
For case: TSOP, TSSOP, MSOP, SSOP, PSOP
This is a TOP solderd carrier. Pins are thru-hole soldered on the same side of the PCB which carries the IC
Limited support for IC's with thermal pads. IC must be precisely positioned on thermal land.
For greater thermal dissipation consider styles #14 and #17
Above: female machined sockets can also be used, if available, by inserting short lengths of thin wire in them. Use sufficient solder to fill the cup of the machine socket.
Industrial PCB assemblers use machines, not humans to place parts on a PCB. The solder paste is applied by silkscreening (printed like an ink) and melted by reflow systems. These systems only require IC solder pads as small as a tiny dot, and they can get the IC soldered in position every time with pinpoint accuracy.
1. Space where to put the soldering iron tip when heating the pad, while maintaining a distance of 1-2 mm from the IC lead. (You should not touch the IC lead with the iron tip directly.)
Don't get stuck with cheap Chinese imitations which give you no room to work.
