Paint booth & hvac filters, (24) 20"X20"X1" ring panel
PAINT BOOTH and HVAC Filters for Inlet Air

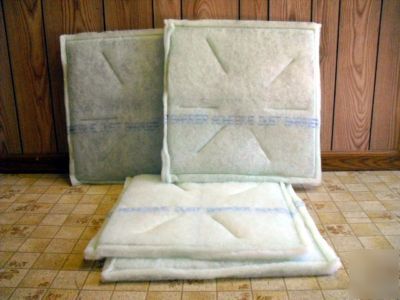

RPDX1 Ring Air filter : 20 x20 x1 - (24) /case
Air entering layer is 0.5 6 and 15 denier dry tackified White Poly.
Air exit layer is 0.5 6 and 3 denier tackified Green Poly.
These panels are typically used in paint booths and HVAC dust capture applications for higher indoor air quality.
Ring Panels are constructed from two layers of 100% synthetic polyester media thermally sealed around a 0.148 galvanized wire. A support wire and radial bonds in the center of the panel keep the media from sagging and fluttering to prevent dust migration. A one inch overlap of media around the support wire ensure a positive seal and no dust bypass. Each layer of media has multiple fiber deniers which graduate from coarse to fine for maximum dust loading and efficiency. A latex resin dry tackifier is added on the downstream side as an added dust migration prevention.
Max. temperature 100dF(38dC) continuous, peaks 120dF(49dC)
Max. humidity Resistant to 100% RH
