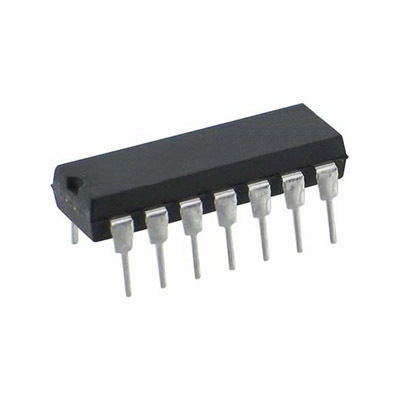

Ics chips:DM74LS125AN quad 3-state non-inverting buffer
- This device contains four independent gates each of which
performs a non-inverting buffer function.
- The outputs have the 3-STATE feature.
- When enabled, the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors.
- When disabled, both the output transistors are turned off
presenting a high-impedance state to the bus line.
- Thus the output will act neither as a significant load nor as a driver.
To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the disable time is shorter than the
