Superior electric M091-fc-316 slo-syn stepping motor

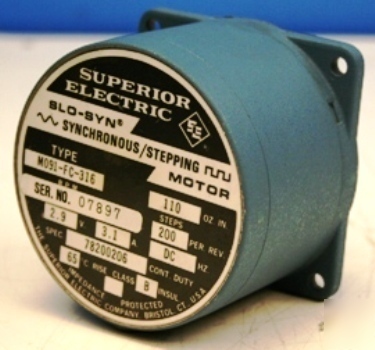

Superior Electric M091-FC-316 Slo-Syn Stepping Motor
200 Steps/Rev, 110oz-in, 65 C, Class B Insul.
Standard 90mm Frame Size Product Features:
* Up to 150% rates torque reserve capacity
* 3% typical step accuracy
* Standard terminal box, encoders, and precision gearheads available
* Available with four, six, or eight leads
* Customized configurations available
* Minimum Holding Torque: Unipolar: 150 oz-in / 106 Ncm, Bipolar: 180 oz-in / 127 Ncm
* Rotor Inertia: 0.0095 oz-in-s / 0.67 kg-cm
* Weight: Net: 3.3 lbs (1.5 kg)
* Maximum Shaft Load: Overhang: 25 lbs / 11 kg, Thrust: 50 lbs / 23 kg
* Minimum Residual Torque: 2.0 oz-in / 1.4 Ncm
