Pelco QD104C color digital quad processor
Pelco QD104C Color Digital Quad Processor with Alarm Inputs
Condition: Used, Mint, Fully Tested and Working Perfectly. Comes as pictured with AC Adapter.

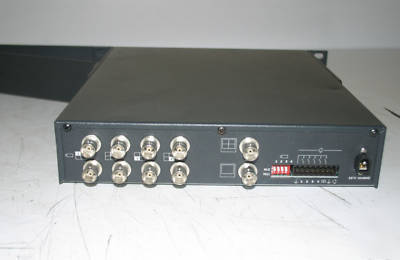

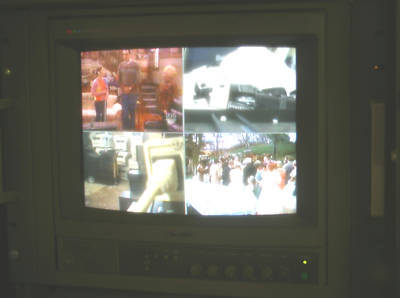

The Pelco QD104C is a high-resolution color quad processor designed to allow up to four analog CCTV cameras to be viewed simutaneosly on a standard monitor. Two monitor ports are available on this unit. The first port outputs a continuous quad display while the second port can be used with a call monitor to display cameras in full screen. The second port can also be programmed to display images in a sequence on a call monitor with regular timed intervals between cameras.
Any of the four cameras can be selected for recording to a VCR using front panel push buttons. If one of the camera inputs experiences video loss, the monitor will display black on that portion of the screen while continuing to display the unaffected cameras.

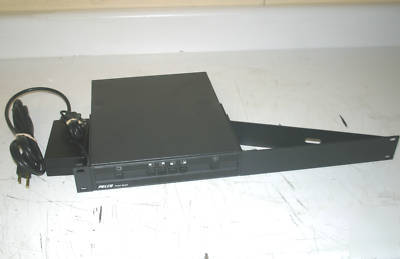

A number of alarm and relay sensors can be used with this unit to trigger an alarm or to activate a device following an alarm occurrence. At the event of an alarm, this unit will switch the affected camera to the call monitor for the duration of the alarm or until acknowledged by an operator. An optional rack mount kit (RK100) is available for installing one or two of these half-rack units in a 19" rack.
* High-resolution color quad display (1024 x 512)
* Quad monitor plus call monitor output
* Full-screen display on call monitor output
* Sequential switching on call monitor output
* Time base correction on all video inputs
* 5 Alarm inputs, 1 alarm output
