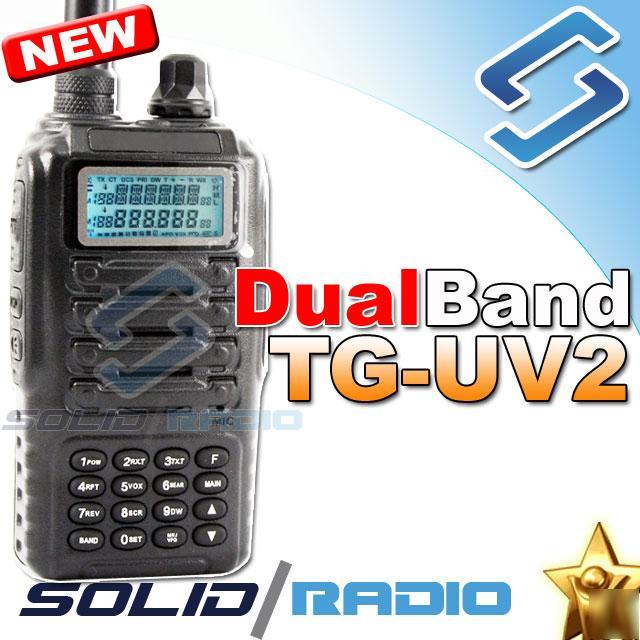

Dual band tg-UV2 136-174, 350-390, 400-470 mhz radio
This is a brand new TG-UV2 dual band radio. 100% new, factory packed and never been used. Small and compact.
Frequency range: FM: 88-108MHz (RX) VHF: 136-174MHz (RX/TX) UHF1: 350-390MHz (RX/TX) UHF2: 400-470MHz (RX/TX) UHF3: 470-520MHz (RX)
* Double frequency display of the LCD
* Voice scrambler (Optional)
* Frequency/channel scanning
* Channel scanning list edition(by which you may choose a channel to scan)
* Power output: High>=5w Medium >=2.5w Low>=1w
* Emission Current: <=1.5A
* Modulation sensitivity: 12mV
* Modulation Distortion: <5%
* Modulation Limiting : Wide <5KHz Narrow <2.5KHz
* Modulation Mode: 16 F3E 11K F3E
* Remanent Radiation <=7 w
* Preemphasis character : 6dB
* CTCSS/DCS Frequency Deviation :0.75KHz 50Hz 0.37KHz 30Hz
* RF Sensitivity: -122dBm(12dB SINAD)
* Modulation Receiver Bandwith: 5KHz
* Spurious response rejection: >=65db
* Dimensions: 110mm x 56mm x 37mm
- 1x 7.4V 1500mah Li-ion Battery Pack
