Via echo mri network analizer
VIA Echo MRI Network Analyzer For Testing MRI or NMR Coils 0.1- 20T
Frequency range: 4MHz to 1.0GHz
Measurement Speed: ~ 2 sweeps/second
Freq. Display Width: 250KHz x N (N = integer)
Impedance Scales: 0 to 50 Ohms Minimum 0 to 2000 Ohms Maximum
Harmonic & Spurious: > 15 dB below fundamental
Output Power: - 10 dBm @ 50 Ohms
External Power : 15VDC @ 500mA Minimum
Internal Power Lead Acid 12VDC battery
Input Connectors: N Type S11 & S21 port
Display: Quarter VGA backlit LCD
Non Volatile Memory: 250 Instrument presets & data
Dimensions: 13x11x5 (330x280x155mm)

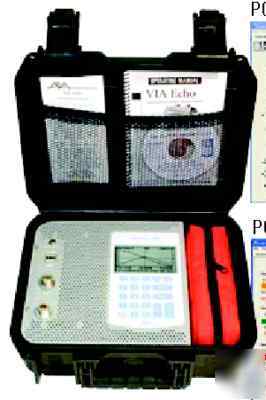

Calibration Terminators N & BNC
Operator Manual N-to-BNC Adapter Set
Removable Magnetic Material Pouch
AC Adapter, 90-240VAC 50-60 Hz
