Hp - agilent 35670A dynamic signal analyzer w/opts

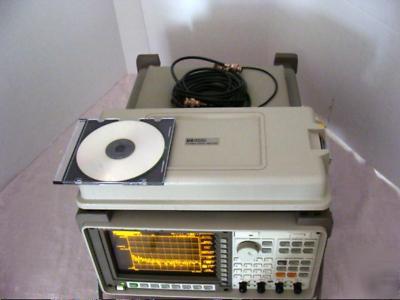

We cannot calibrated the unit because we do not have the calibration CD.

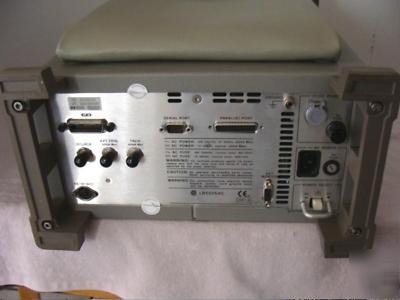

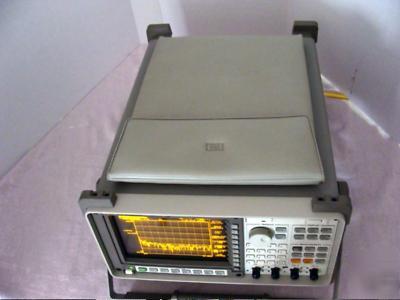

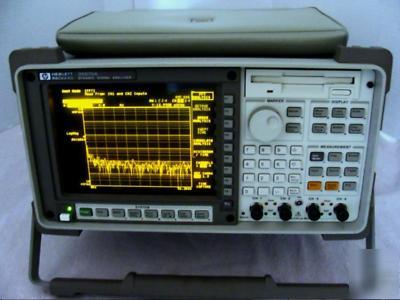

The HP - Agilent 35670A is a portable two or four channel dynamic signal analyzer with the versatility to be several instruments at once. Rugged and portable, it is ideal for field work, yet it has the performance and functionality required for demanding R&D applications. Optional features optimize the instrument for troubleshooting mechanical vibration and noise problems, characterizing control systems, or general spectrum and network analysis. Whether you re moving an instrument around the world or around the lab, portability is a real benefit. Small enough to fit under an airplane seat, the HP 35670A goes where it s needed. But there s more to portability than size. Like a nominal 12- to 28-volt dc power input and selfcontained features that do not require external hardware, such as built-in piezoelectric integrated circuit power supply, analog trigger and tachometer inputs, and optional computed order tracking.

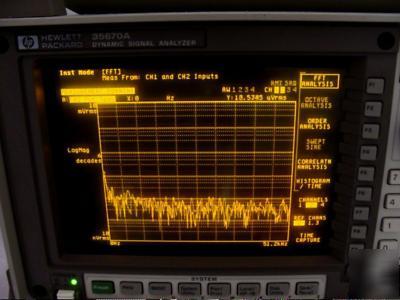

SPECIFICATIONS: *** 102.4 kHz at 1 channel, 51.2 kHz at 2 channel, 25.6 kHz at 4 channel *** 100, 200, 400, 800 and 1600 lines of resolution *** 90 dB dynamic range, 130 dB in swept-sine mode *** Source: Random, Burst random, Periodic chirp, Burst chirp, Pink noise, Sine, Arbitrary waveform *** Measurements: Linear, Cross, and Power Spectrum, Power Spectral Density, Frequency *** Response, Coherence, THD, harmonic power, Time Waveform, Auto-correlation, *** Cross-Correlation, Histogram, PDF, CDF *** Octave analysis with triggered waterfall display *** Tachometer input and order tracking with orbit diagram *** Built-in 3.5-inch floppy disk .
More information: http://www.wmich.edu/mae/research_labs/noise_vibration/pdf/HP_analyzer.pdf
