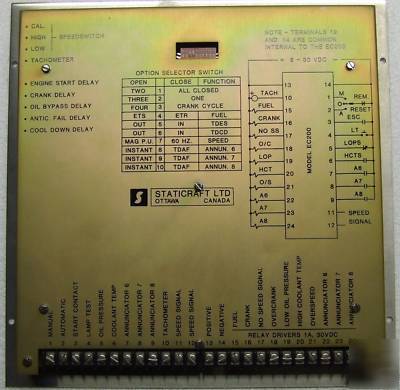

Engine control electronic model EC200 staticraft canada
QUOTED FROM THE MANUFACTURERS EC200 INSTRUCTION MANUAL
THE MODEL EC200 IS A COMPLETELY SOLID STATE CONTROL,CONTAINING ALL OF THE LOGIC, TIMING AND ANNUNCIATION REQUIRED FOR THE AUTOMATIC CONTROL AND PROTECTION OF AN ENGINE.

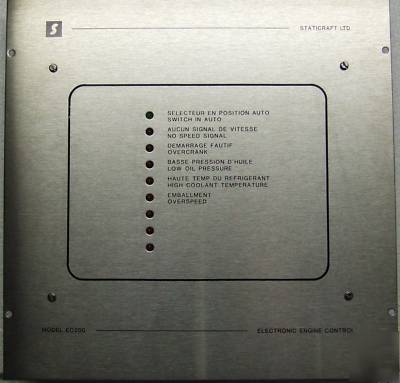

THE UNIT CONSISTS OF A SINGLE CIRCUIT CARD MOUNTED IN AN IRIDITED ALUMINUM CHASSIS WITH A STAINLESS STEEL FRONT PANEL, SUITABLE FOR FLUSH MOUNT. UNIT DIMENSIONS ARE 12" X 12" X 1,5" HWD.
THE INTERNAL POWER SUPPLY WILL OPERATE FROM 8 - 30 VDC, ALLOWING THE EC200 TO BE USED WITH 12 VDC OR 24 VDC SYSTEMS.
THE EC200 HAS AN INTERNAL ELECTRONIC SPEED SWITCH TO DISCONNECT THE STARTER MOTOR AND PROVIDE OVER SPEED PROTECTION.
IN ADDITION,A SIGNAL DERIVED FROM THE SPEED SWITCH CIRCUITRY IS CONDITIONED TO PROVIDE A 0-1mADC OUTPUT SUITABLE FOR DRIVING A 0 - 1 mADC METER CALIBRATED IN RPM.
THE CONTROL ALSO PROVIDES FIVE USER-ADJUSTABLE DELAYS, AND AN OPTION SELECTOR SWITCH TO PERMIT MODIFICATION OF THE CONTROL LOGIC.
THE EC200 HAS TWO MODES OF OPERATION: AUTOMATIC AND MANUAL.
PROTECTION IS PROVIDED FOR THE FOLLOWING ALARM CONDITIONS:
CONDITION: UNIT WAS PREVIOUSLY INSTALLED TO TEST. PERFORMED TO SPECIFICATIONS
ENSURE THAT THIS ITEM SUITS THE INTENDED APPLICATION.
