Cnc bed mill / mach 3 cnc / ball screws / ac servos

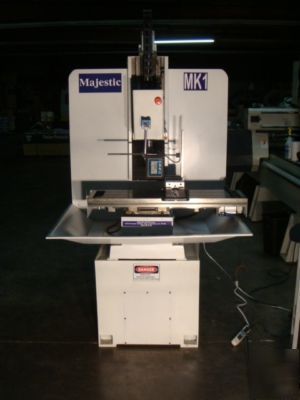

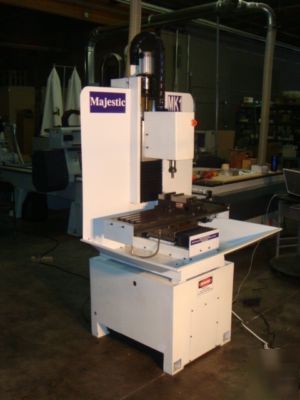

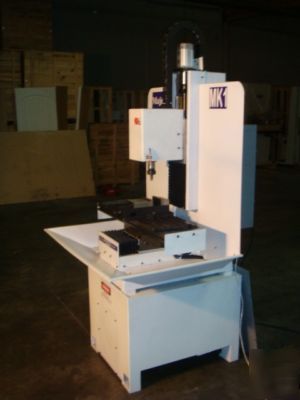

We are offering our demo model Majestic MK-1 CNC bed mill

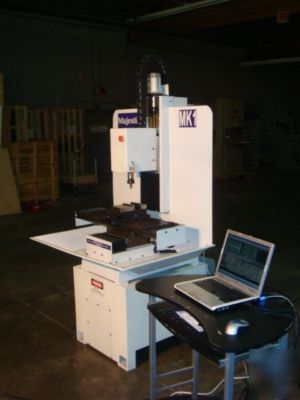

Full 3D cutting machine using Mach 3 CNC software
AC SERVO driven on all axis. It was used in house for demonstrations and testing of high speed machining.
The linear slides are solid, spindle works great and it has a cast iron base. Linear ways on all 3 axis combined with a double nut ball screw anchored on both ends provide super smooth motion.
The MK1 model machines can be used for very simple to extremely complicated parts.
Some common uses and applications for a machine of this style are:
All Milling Machine shop applications
Medical (can be rolled through a 36" door)
Ornamental And many, many more.
Computer:.........................................None supplied.
Option 1 .............................................We will send you the software
Option 2 ..............................................Send us your PC, we install
Option 3 ..............................................We will get you a PC and install for a small fee
Work Table ...................................... 10 x 36 (Approx)
Table T Slots .................................... (5) 15mm
Main Spindle ..................................... 2 HP Spindle
RPM ................................................. 400 to 5,000 Variable
Spindle Nose ..................................... ER-32 Collet

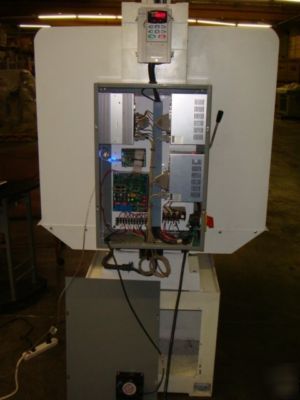

AC Spindle Driver ........... ................. Delta Variable Frequency Inverter
X, Y and Z (Type) .............................. AC Brushless
X, Y and Z (Power) ........................... 1 HP (750 watt)
Encoder resolution ............................. 10,000 CPR W/ quadrature
Ball screws Diameter .......................... 25mm
Pitch .................................................. 10mm
Nut ..................................................... Double nut design
X ....................................................... 12
Y ........................................................ 6-1/4
Z ........................................................ 10-1/2
Rapid Traverse .................................... 500 inches per Minute
Feed Rates .......................................... 0.0001 to 500 IPM
Machine Foot Print ...with chip .. 42 R/L, 36 F/B, 6 4 tall
Machine Base / Stand Size ................. 24 R/L, 29 F/B, 21 tall
Power requirements ............................ 220 VAC
Power requirements ............................ Single phase convertible
* I refuse to load on a truck that has been brokered by freight quote. No exceptions.
