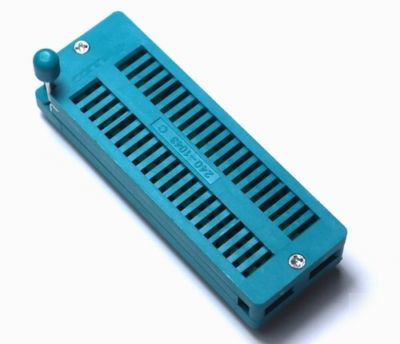

5PCS * 40PIN ic test universal gold-plated zif socket
5 pcs 40-pin Universal Gold-plated ZIF Socket
Using close-type institutions to ensure high service life functions.
Standard 2.54mm step distance, easy on the plate
All plastic materials are UL V-0 fire rating
Method using gold-plated terminals to ensure low contact resistance and high life expectancy
1. Electrical Characteristics:
Terminal Rating: 50 volts DC, 100 mA
Terminal contact resistance: resistance to plug before: 10 milli-Europe's largest resistance to plug follows: 20 milli-Europe's largest
Insulation resistance: 100 megohm minimum
Withstanding Voltage: 500 volts
2. Mechanical and environmental characteristics:
Operating temperature: -25 to +70
Storage temperature: -40 to +85
Constant temperature and humidity: 95% humidity, 40 degrees, 96 hours
Vibration Testing: In accordance with MIL-STD-202F, Method 201A
Chi Tin of: plus flux, tin furnace temperature of 230 degrees, time 5 0.5 seconds, to be met Chi tin over an area of% 95
Resistance to soldering heat: 260 degrees, 5 1 Miao
