10 MC14551BCP MC14551 quad 2-channel analog ic chip dip

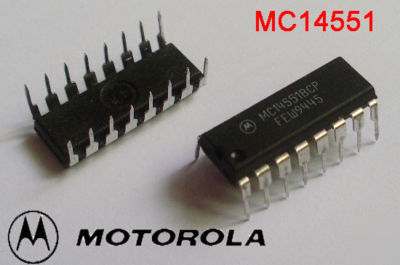

10 pcs MC14551BCP MC14551 Quad 2-Channel Analog MOTOROLA IC Chip
The MC14551B is a digitally controlled analog switch. This device
implements a 4PDT solid state switch with low ON impedance and very low
OFF Leakage current. Control of analog signals up to the complete supply
voltage range can be achieved.
Triple Diode Protection on All Control Inputs
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Analog Voltage Range (VDD VEE) = 3.0 to 18 V
Linearized Transfer Characteristics
Low Noise 12 nV/Cycle, f . 1.0 kHz typical
For Low RON, Use The HC4051, HC4052, or HC4053 High Speed
Switch Function is Break Before Make
