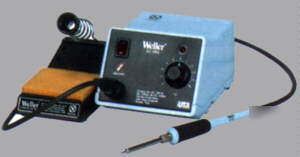

Model EC2002M1 electronic soldering station
MODEL EC2002M1 Electronic soldering station
MODEL EC2002M ELECTRONIC SOLDERING STATION
EC2002M-1 Power unit, 120V 60Hz, F display, EC1201A tool with ETA tip
1. Power input: 120VAC 10%, 60 Hz, (240VAC 10%, 50/60 Hz). 60 watts
2. Power unit output voltage: isolated 24VAC @ 2.7 amperes.
4. Line Cord: 3 wire, U.L. recognized
5. Tip temperature control range: 350 F to 850 F (177 C to 454 C).
6. Control setting resolution: 1 F (1 C).
7. Stability: 10 F ( 6 C) per Mil-Std-2000.
8. Absolute accuracy: Average tip temperature is calibrated to 9 F ( 5 C) at idle with no load.
9. Ambient temperature range: 60 F to 110 F (16 C to 44 C).
10. Housing made with Electrostatic Protective Material as required in MIL-B-81705.
11. Housing passes Static Decay test per Federal Test Method Std. No. 101, Method 4046.
12. Weller ESD tools comply with DOD-HDBK-263.
Here's a link to the PDF manual:
http:// /board/links/test_EQ/Weller%20EC2002M%20Soldering%20Station%20WW.pdf
