New labpowertm DS1502A-f dual 15V benchtop power supply
Dual 15V Benchtop Power Supply

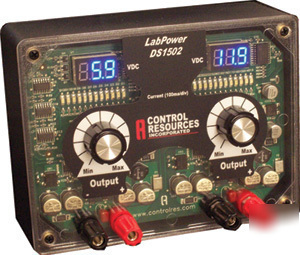

LabPower DS1502 is a dual adjustable benchtop power supply designed for powering small digital and analog circuits. Its compact size takes very little valuable bench space and makes this benchtop DC power supply very portable. Both 15 volt power supplies are independent allowing +/- configurations as well as dual supply logic circuits. The outputs are fully protected from short circuit faults. The short circuit current is 1.6 amps and will shut down to 0 amps in approximately 15 seconds to prevent damage to external circuits. The output automatically recovers when the short is removed. The active current limiting will fold back the output voltage to prevent arcing and damage to external circuits when a short is applied. This dual variable benchtop power supply is ideal for test benches, laboratories, universities and repair facilities.
LabPower Dual 15V Benchtop Power Supply Specifications

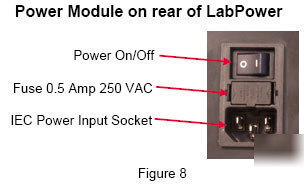

* Input: 115/230 VAC, 50/60 Hz
* Input fuse: 0.5 Amp time lag
0 - 12 VDC @ 1000 mA typical
>12 - 15 VDC @ 300 mA typical
* Terminals: Dual color-coded binding posts
* Meter: Dual digital VDC, 0.1 VDC resolution, 2% accuracy typical
* Current display: Dual 12 segment bargraph LED
* Size: 4.9 "H x 6.2"W x 3.3 "D (124mm H x 157mm W x 84mm D)
* Operating temperature: -20 C to 40 C
LabPower Dual 15V Benchtop Power Supply Part Numbering
Continental Europe Style Power Cord
