Techfx toaster oven 3.0 reflow controller usb microchip

NEW version 5.01 software!!! tons of improvements
NOW works on windows x64 (vista,xp), windows 7 too!!! in addition to x32 versions.
* can use Infrared thermocouple from Omega engineering!!
* improved software talks to you so no more baby sitting!
* big LED clock readouts you can see from across the room
* 3 algorithms to choose from with adjustable PID time base (including classical PID algorithm)
* NOW can stand the heat with High Tg 4 layer PCB's !!!!
* NOW WITH GREATER ACCURACY!!
* NOW SUPPORTS EXTENDED PROFILE RUN TIMES UPTO 2 DAYS FOR DRYING COMPONENTS AND CURING COMPOSITE MATERIALS!! not just for reflowing anymore!!!
techFX reflow 3.0 toaster oven SMD controller!!
use your toaster oven to reflow surface mount parts!!!!!!!! save money!!
-works standalone (LCD and keypad) or through USB
FREE reflow oven software, profile manager, graphing, USB bootloader!
FREE CONTROLLER REPAIR FOR LIFE
made by The Silicon Horizon Inc.
(1) CD with techFX reflow tools
(1) techFX reflow 3.0 controller
The newly revised controller to transform your donor toaster oven into an SMD reflow oven. Control upto 500 deg Celsius ovens using ramp profiles and excel spreadsheets using techFX tools which comes free with all reflow controllers! With this controller you can do multilayer boards without burning them, double-sided surface mount components using the same temp solder paste for both sides, and safely reflow the boards several times without burning them! This controller is your in-home SMD reflow solution. Also ideal for low volume assembly.
* standalone control from keypad and LCD interface or use computer with free software
* create ramp profiles (standalone or computer) or spreadsheet using computer control
* AD597 K-type thermocouple amplifier
* Both oven relay and fan relay outputs for driving system both directions!
* mini-USB connector to control via software
* I2C standalone LCD and keypad interface already implemented in software!
* I2C interface for LCD display (Matrix Orbital LK204-25 supported in our software, No Coding LCD solution with this display!
* keypad interface via above LCD availabel from Matrix Orbital connects to that LCD
* Serial LCD via user supported code
* Serial interface for cheaper serial displays
youtube video showing the reflow process on actual FR4 boards using a stencil and solder paster on a black and decker infrawave oven. Please note the video was done using v 4 of our software so you wont hear the software talking to you!!
The video shows double sided SMD work on a 4 layer board using same temp solderpaste (pbfree). Its all in the profile folks!! :-)
You can interface to the controller with the USB port, or use it standalone with a LCD and keypad. Using techFX tools, you can store and use ramp profiles quickly and easily. Use excel spreadsheet profiles from your computer!

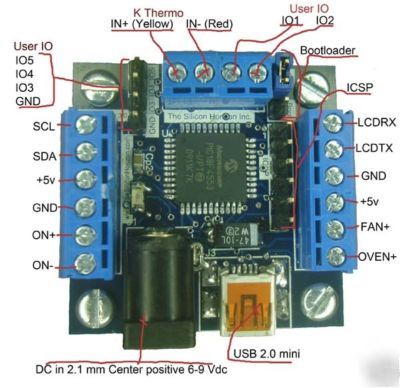

* upto 500 deg Celsius temp control
* High Tg board to handle the heat!!
* AD597 K-type thermocouple amplifier
* I2C interface for keypad and LCD using a Matrix Orbital LK204-25 LCD and any keypad which plugs into that LCD
* Serial LCD interface for user supported LCD (add your custom code option)
* 48Mhz Microchip 18f4553 MCU at 12 MIPS featuring 12 bit A2D
* Full speed USB 2.0 on mini USB connector
* bootloader through USB allows easy firmware upgrading
* ICSP programming port for ICD2 or Pickit
* 256K memory on (1) 1 Mhz I2C EEproms
* 5.0 v LDO voltage reg upto 800 mA
* 6-9 volts DC input range
* 2.1mm CP DC power jack (CP)
* Both Oven and Fan relay outputs for driving system up and down
* (5) User expandable IO pins to support buttons or LEDs, and analog inputs (1 on INT pin)
* circuit board standoffs included
* approximate performance we have achieved on a Black and Decker Infrawave toaster oven was +/- 2 deg Celsius (performance will vary depending on your oven's capabilites and setup)
Optional equipment to use this controller
* Matrix Orbital LCD p/n LK204-25 with I2C interface (already supported in software)
* any standard keypad which will plugin to the LCD above (works via I2C interface also). Digits required are 0-9,+,- keys. Matrix Orbital sells this also.
* cheap Serial LCD (add your own code to support this)
Required equipment to use this controller
* Solid state relay (or other output interface circuit to interface to oven), 2nd relay if using a Fan
* AC/DC power adapter 2.1 mm CP 6-9 volts DC regulated (no unwanted AC transients)
* some type of enclosure
* strongly recommend a breaker type wall outlet for safety or ground circuit interuptor
* power cord and plug for your enclosure
* K-type thermocouple from Omega Engineering Inc. (recommend open head, ungrounded, short as possible, small time constant, not too thick, sheathed type K)
please msg with any questions :)
