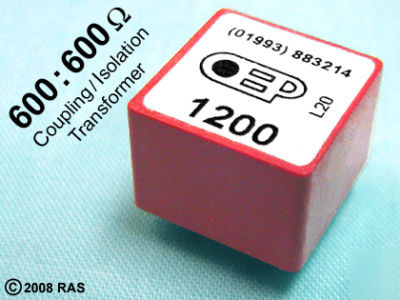

Miniature 1:1 600ω telecom coupling transformer
(1) 600 : 600 Signal Transformer
Telecommunications - 1:1 Ratio Line Coupling / Isolation
Fixed price is for (1) transformer.
For HAM Radio / Computer / Modem
Telephone Interface Applications
* Pri : Sec Impedances 600 : 600
* DCR Pri & Sec: 65 (per winding)
* Insulation Test: 4000 VRMS
*Each winding's start / stop pin spacing is the 0.3" dimension.
Both windings have a 65 DCR so Pri and Sec are reversible.
Use AC only for best performance. Not rated for DC current.
Sample Phone Patch schematic available on request.
