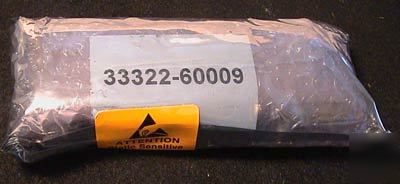

Hp 4GHZ 15VDC step attenuator 33322-60009 part 33322ZB
This is a new HP step oscilloscope attenuator. I have been planning to test it and give all of it's characteristics but I have not had the time - "so here it is." If data is critical to your purchasing decision - let me know and I will try to get some data for you.
I believe this unit is similar to the 8495G but is designed for linear voltage dividing (dBv) versus logarithmic power attenuation (dBm)
Standard dBv oscilloscope voltage attenuator
The programming connector is the optional 14 pin DIP
This attenuator is a specific replacement part for the 54712A. It is new in the wrapper.
54712A 1.1 GHz amplifier plug-in
