Benchmark double insulated down draft spray booth w/pit
This Item is a Lease Repossession.

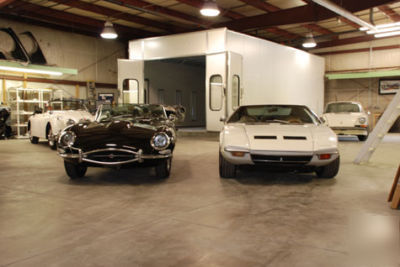

This is an exceptional Value. The metal raised pit saves you thousands in having to install a pit. If purchased new you would be at $29,500 for this quality finishing system, If you take time to focus on the pictures you will find this booth is in very nice condition, This booth was installed in late 2007, and has had very little use.
For a installation quote at your location contact Tim King at (***)-340-4280
Why pay $29,500 for new when you can have this gently used booth for much less.
Benchmark Series Standard Edition: Insulated Downdraft
Full Down Draft Spray Booth Package
Inside: 29 6 Long, x 9 ,10 height x 14 4 width. Outside: 29"7 Length
x 12 4 Height x 14 6 width (without fan/Heater)
Double Wall Insulated Panels, 2-1/2 Thick with Complete Aluminum
Bright White Porcelain Like Powder Coating Inside and Out.

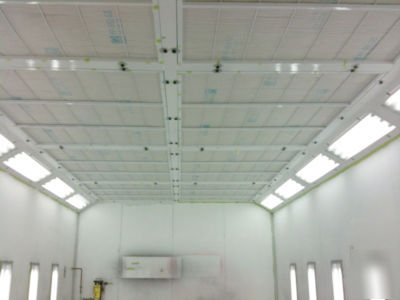

Fully Filtered Ceiling with Clean Room Grade Filtration.

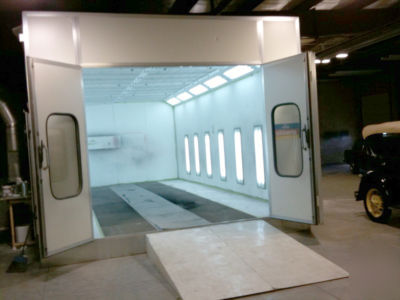

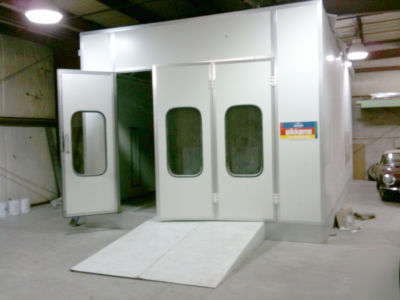

Three Door Frontal (Tri-fold) with Large Glass Observation Window in
each Door. Door Opening: 9 8 wide x 8 7 tall.
Side Man Access Door with a Large Glass Observation Window. Door
Opening 6 2 tall x 2 6 wide.

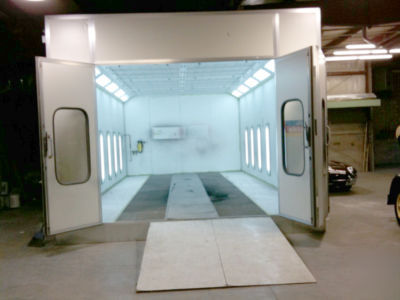

Full Metal Raised Basement with (2) Rows of Grids (each 2 6 wide x
26 long) and (3) Rows of Diamond Plate powder coated. Raised Basement
(2) 8 long x 10 wide Diamond Plate Load Ramps.

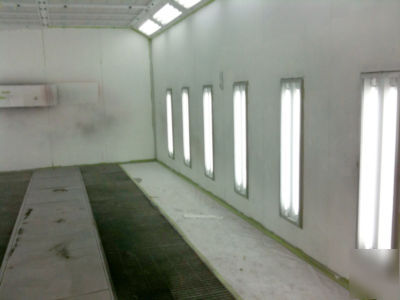

20 Inspection Grade light fixture package:
(10) Angled Hip Lights, 32 watt, 48 T-8 Electronic Lamps.

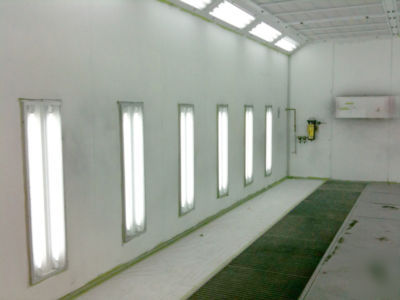

(10) Side Wall Lights, 32 watt 48 T-8 Electronic Lamps.
32 Dayton Tubeaxial Fan with a 5 HP, 240volt Dayton Motor
System moves 16,000 CFM of Air Flow at 1/2 Static Pressure.
Exhaust Ducting For: 18' Metal Roof 2/12 Pitch
30" Duct 4' Section 3 113.60 340.80
30" Pitched (2/12) Roof Flashing & Collar 1 331.03 331.03
30" Butterfly Damper (Wind & Rain) Cap 1 306.10 306.10
30" Duct Connection Fan Ring 1 66.43 66.43
30" Exhaust Duct Package - Metal Roof 1,044.36
Electrical Package For: Three Phase 240 Voltage
On/Off Selector Switch Mag Starter 240V, 5hp, 3ph, 12-18Amp, Nema1,
Non Fused Disconnect 30A, 240v, 2hp-7.5hp, 3ph, Nema1 1 51.96 51.96
Solenoid Valve & Coil, 1/2" 120v 1 134.10 134.10
Door Limit Switch - Door switch turn off fan and air valve when doors
Mounting Hardware for Micro Switches 1 30.00 30.00
Electrical Package 3 Phase, Non Heated
We will assist in the loading of the equipment,
palletizing or loading / securing into overseas container / Crating.
