3/4" usa t-bolts mill t-slot hold down clamps us made
Manufacturer ........ Williams USA
Size ......................... 3/4"
Bolt Length ........... 2.625"
Head Size ............... 1.508" Overall width, your table t-slot at the bottom of the slot will need to be at least this wide and this head is 1.783" in Length
Slot size .................. .858" Your t-slot will need to be at least this wide at the top of the slot
Thickness ............... .584" Your slot height will need to be at least this thick, that is the distance from the bottom of the slot up to the next step ledge

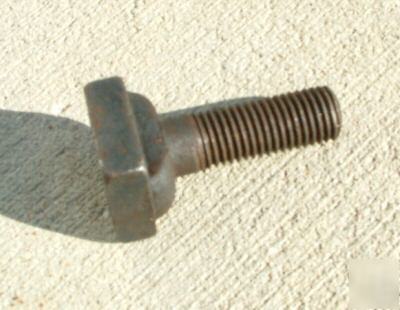

This is not an actual photo but this t-bolt is exactly like the one in the photo.
