New bunn cds ultra brand legs (set of four) 26528.0000

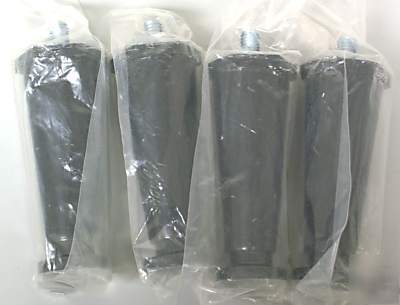

This is a brand new in the factory bags set of four legs for the Bunn Ultra and CDS machines. These are individually wrapped and are perfect. They are two-pieces and adjust in length by screwing one part into and out of the other. You get four legs with each purchase.
Margarita Guys Tip: We recommend you adjust (lengthen) the two back legs about 3/8" taller than the front legs on your machine. This helps condensate from the hoppers move to the front of the upper drip trays where the drain hole is plus it makes breaking down and cleaning the machines faster and easier. When the hoppers are drained prior to removal for cleaning, the slight slant to the front helps to drain the entire contents of the hopper. When you then pull the hopper, you have less mess left on the machine and any remaining product tends to stay in the hopper since it is tilted slightly forward.
These often break when moving the machine. Occasionally the "nut" (actually a tapped plate) inside the machine breaks off - it is lightly spot welded in place. If this happens, you can still use the plate but you'll need to open a side and hold it with a pair of pliers when you screw in the new leg. To fix it properly, mark where the plate should be with a Sharpie then use a little MIG or TIG welder and tack it in place. Lacking a welder, you might try cleaning the plate and the bottom of the case and placing a bead of JB Weld around the outside of the plate where it abuts the bottom of the plate. Either way, don't clog up the tapped hole where the leg comes through.
If you have questions, call us on our 800 number and we'll walk you through the installation of this part (they simply screw in to the threaded holes in the corners of the bottom of the machine). We can also help you diagnose other problems you may be experiencing with your Bunn CDS or Ultra machine and can supply the parts and instructions you may need to get your machine running like a champ. We are sure that if you can hold a screwdriver, with our help you can fix almost everything on this machine yourself.
