Lambda alpha 400W modular output power supply H47037

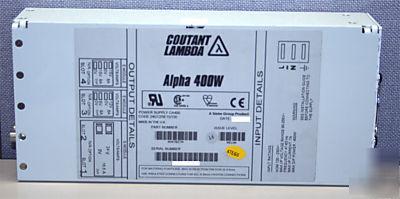

Lambda Alpha 400W Modular Output Power Supply H47037
* Low Leakage Medical Versions
* Input Voltage: 85 264 Volts AC, 120 360 Volts DC
* Power Factor: Typically > 0.95
* Fuse: Internal Fuse (no user access)
* Input Frequency: 47 to 63 Hz
* Isolation: Input to Output 3kVRMS Input to Ground 1.5kVRMS
* Leakage Current: <1.1 mA 260 Volts AC, 50 Hz
* Efficiency: Typically 75% (configuration and input dependant)
* Hold Up: 15mS minimum at full rated output
* Switching Frequency: PFC converter 100 KHz
* Thermal Protection: On converter. Cycle on/off to reset
* Isolation: Output to output 500 Volts DC
