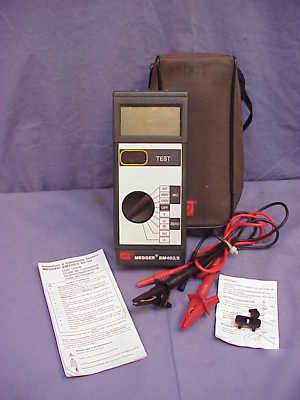

Avo BM403/2 megger multimeter working/ repair
Lab Notes: Powers up. nice display. The Ohm and Kilo-Ohm functions do not work properly. This item will require repair.
The AVO Megger BM400/2 Series of autoranging insulation and continuity testers, provides simplicity of
use in a hand-held instrument designed to IEC1010-1 safety standards. The BM400/2 Series offers a
range of single, dual and multi-voltage variants to fit specific applications. The insulation ranges output
the nominal test voltage when loaded with 1 mA as specified within these standards. The continuity ranges
have a short circuit test current of at least 200 mA. In addition to the insulation and continuity ranges, the
BM400/2 series has a resistance range and 2 voltage ranges. The resistance range measures up to
100k ohm on the digital scale and up to 10 M ohm on the analog scale. Due to the low test voltage and
current of this range, the instruments can be used to test circuits with sensitive equipment connected,
Fully complies with the requirements of BS7671, HD 384, and IEC 364
1 mA insulation output current
200 mA short circuit current output
