AD7356, 5 msps, 12-bit sar, a/d converter adc, qty 2

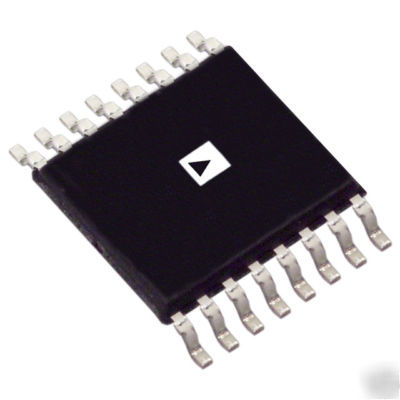

AD7356YRUZ, Differential Input, Dual, Simultaneous Sampling, 5 MSPS, 12-Bit, SAR (ADC), 16 Pin TSSOP, Quantity 2, Analog Devices.
The AD7356 is a dual, 12-bit, high speed, low power, successive approximation ADC that operates from a single 2.5 V power supply and features throughput rates up to 5 MSPS. The part contains two ADCs, each preceded by a low noise, wide band- width track-and-hold circuit that can handle input frequencies in excess of 110 MHz.
The conversion process and data acquisition use standard control inputs allowing for easy interfacing to microprocessors or DSPs. The input signal is sampled on the falling edge of CS; a conversion is also initiated at this point. The conversion time is determined by the SCLK frequency.
The AD7356 uses advanced design techniques to achieve very low power dissipation at high throughput rates. With a 2.5 V supply and a 5 MSPS throughput rate, the part consumes typically 14 mA. The part also offers a flexible power/throughput rate management option.
The analog input range for the part is the differential common mode VREF/2. The AD7356 has an on-chip 2.048 V reference that can be overdriven when an external reference is preferred.
* These functions allow simultaneous sampling and conversion of two channels.
* The conversion result of both channels is simultaneously available on separate data lines or in succession on one data line if only one serial port is available.
* High Throughput with Low Power Consumption.
* Throughput rate: 5 MSPS per channel with 36 mW power consumption.
* Specified for VDD at 2.5 V
* Two standard successive approximation ADCs with accurate control of the sampling instant via a CS input and, once off, conversion control.
* Power dissipation: 36 mW at 5 MSPS
* On-chip reference: 2.048 V 0.25%, 6ppm/ C
Quantity 2 ....... New Parts !!!!!
