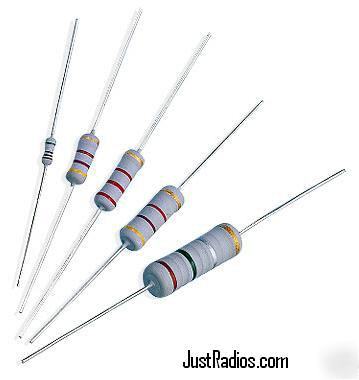

1 watt metal oxide "most needed ohm sizes" resistor kit
This Resistor Kit: 600 Flame-Proof 1W Metal Oxide/Carbon Film Resistors : 5% Tolerance : (20 each of 30 most popular ohm sizes).
Never run short of the popular resistor size you need. This kit contains 600 top quality, new stock, flame-proof metal oxide/carbon film resistors. Sizes 100 ohm thru 470K are flame-proof metal oxide and over 470K ohm are ohm are flame-proof carbon film. This kit contains 20 each of the most often needed sizes 100 ohm thru 2.2M ohm. These brand new factory fresh 1 watt flame-proof resistors feature: wattage of 1 Watt ( replace your old 1/2W carbon comp with moden 1W flame proof resistors ); tolerance: +/- 5%; operating temperature range: -55C to +155C; working voltage for flame proof metal oxide is 350V and for flame proof carbon film WV is 500V; flame proof coating; solder plated copper wire axial leads; ISO 9002 & UKAS certified and 100% RoHS compliant.
The resistors in this kit are excellent resistors for use in high power circuits such as tube radios, amps, TVs, etc.; have high stability and high reliability under diverse conditions and high temperatures....ideal for use in tube electronics. A practical replacement for 1/2W carbon composition resistors.
* Resistors in each kit have been specifically selected for tube radio, tube hi-fi, tube audio/guitar amplifier and tube based TV restorations.
* You get the most often needed resistor sizes in our Resistor Kits.
* All resistors are new "fresh" stock. We do not sell NOS (new old stock).
* All resistors are high voltage "normal" size body type. We do not stock the cheaper, low voltage "small" body type.
* For added safety, all resistors in our 1 Watt, 2 Watt and 5 Watt Kits are "flame proof" resistors.
* Free heat-shrink / spaghetti tubing with each resistor kit.
* MONEY BACK GUARANTEE on all Capacitor Kits.
* All resistors are ISO Certified and 100% RoHS compliant .
note: K = Kohm = 1000 ohms and M = Mohm = 1,000,000 Ohms
Resistors Included in Resistor Kit
: 600 Metal Oxide/Carbon Film Flame-Proof Resistors
High reliability. High Stability. Flame Proof Coating.
A "popular replacement" for Carbon Composition Resistors.
This kit contains 600 high quality flame proof metal oxide/carbon film resistors ..... 20 each of the 30 most often needed post-WWII sizes Highly stable and reliable, these resistors are "popular replacement" for carbon composition resistors.
Construction: Resistance element is formed by the oxidation reaction of a vapor or spray of tin chloride or tin-oxide film over a high thermal conductive rod. A flame proof coating is then applied. Total length of each 1 watt resistor is 70mm with body size 4.2mm by 11mm. *680K and over are flame-proof carbon film type.
* Wattage: 1 Watt ( Replace your 1/2W carbon comp with 1W flame proof resistors).
* Ohms: Kit contains the 20 each of the thirty most often needed resistor ohm sizes.
* Operating Temperature Range: -55C to +155C
* Working Voltage: For Metal Oxide working voltage is 350V with maximum overload voltage of 600V. For carbon film the working voltage is 500V with overload voltage of 1000V.
* Excellent resistor for use in high power circuits such as tube radios, amps, TVs, etc.
* High stability and high reliability under diverse conditions and high temperatures. Ideal for use in tube electronics.
* A popular replacement for 1/2 watt carbon composition resistors.
* Solder plated copper wire axial leads.
* ISO 9002 & UKAS certified and 100% RoHS compliant.
(20 each of the 30 most often needed sizes)
* 8 feet of heat-shrink tubing
Do you need fewer or differtent sizes of resistors than are in the above resistor kit? JustRadios carries a full line of resistors for tube electronics, including; carbon composition, metal ozide, carbon film, metal film, metal glaze and power resistors. If you have a resistor requirement ...feel free to email us at ****@yahoo.com
