> Ando AQ6330 portable optical spectrum analyzer osa
Ando AQ6330 portable optical spectrum analyzer osa

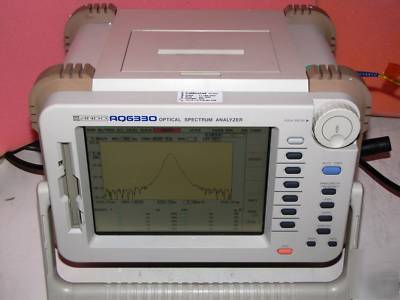

Yokogawa AQ6330 Portable Optical Spectrum Analyzer
Test and measurement, optical instrument, sensor, DWDM
* Applicable fiber: Single mode fiber (10/125 m)
* Wavelength range: 1200 to 1700 nm;
* Wavelength accuracy: 0.05 nm (1500 to 1570 nm), 0.3 nm (1200 to 1700 nm)
* Wavelength linearity: 0.02 nm (1500 to 1570 nm)
* Wavelength reproducibility: 0.005 nm (1 min.)
* Wavelength resolution: Max. resolution ~0.08 nm (1500 to 1600 nm)
* Resolution settings: 0.2, 0.5, 1.0 nm;
* Resolution accuracy: 5 % (Resolution above 0.2 nm);
* Measurement level range: -90 to +20 dBm (1200 to 1600 nm)
-80 to +20 dBm (1600 to 1700 nm)
* Level accuracy: 0.3 dB typ.
* Polarization dependency: 0.05 dB (1550 nm);
* Level linearity: 0.05 dB (Input level: 0 to -40 dBm, sensitivity: HIGH 1 to 3);
* Level flatness: 0.1 dB (1500 to 1570 nm), 0.2 dB (1520 to 1620 nm)
* Level reproducibility: 0.02 dB (1550 nm, input -23dBm)
* Dynamic range: 40 dB or more (1523 nm, peak: 1.0 nm, resolution: max)
30 dB or more (1523 nm, peak: 0.4 nm, resolution: max);
* Return loss 30 dB typ. (1550 nm);
* Sweep time Approx. 1.0 sec.
(Span: 50 nm, sensitivity: NORMAL HOLD, number of sampling: AUTO, average: 1)
* Functions Measurement condition Auto-configuration by auto-sweep sensitivity (NORMAL HOLD/AUTO, HIGH 1/2/3), averaging,
number of sampling, (11 to 20001, AUTO), sweep between markers, 0-nm sweep, pulse light measurement
