Fluke 6062A 100 khz-2.1GHZ synthesized rf signal gen.

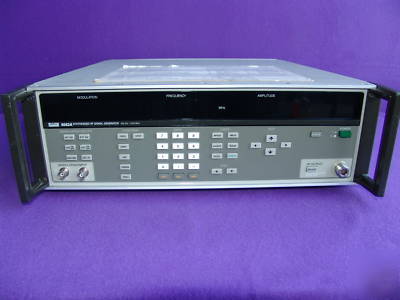

FLUKE/PHILIPS 100 Khz-2.1Ghz Synthesized RF Signal Generator
This is for a FLUKE/PHILIPS 100 Khz-2.1Ghz Synthesized RF Signal Generator that passes all Self-Test that's sold with a 30 days warranty against DOA!
This unit has been turned on and confirmed to be in good working condition and passes all self tests. All knobs and buttons are present and reacts as they should when being pressed. With our 30 days warranty against DOA, if the item arrives in a non working condition, or a problem was found within 30 days, simply return the item for a complete refund.
Options: 130: High-Stability Reference
Specified amplitude accuracy is 1.5 dB from -127 dBm to +13 dBm
The 6062A Synthesized RF Signal Generators covers the frequency range of 100kHz to 2.1GHz in 20Hz steps (10Hz steps below 1050MHz).
The 6062A has amplitude and frequency modulation as well as phase and fast-rise pulse modulation. The instruments gallium arsenide pulse modulator generates fast, high quality pulses for testing of pulsed communication and navigation circuits. The 6062A employs a design that can generate very narrow pulses, limited only by the modulator's 15 ns rise and fall time.
The 6062A Synthesized RF Signal Generator is designed for general testing applications requiring good modulation frequency accuracy and output RF performance with moderate spectral purity. The 6062A operates from 100 kHz to 2100 MHz at levels from -137 to +16 dBm. The 6062A has AM FM Phase and Pulse modulation capability. The 6062A is fully programmable and has a VFD display that indicates current settings and status. The 6062A has a crystal time base or optionally a choice of a medium stability or ovenized high stability time bases.
