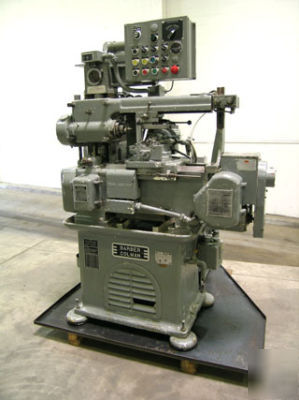

Barber colman model 6-10 gear hobbing machine
(1) USED - BARBER COLMAN MODEL 6-10 GEAR HOBBING MACHINE*
DP and Diameter in Steel, 1 Cut - Maximum 16 DP - 2" Diameter
Rated Work Diameter - Maximum 6"
Travel of Hob Carriage - Maximum 10-1/2"
Dist. Work Spdl Face to Tail Center - Maximum 15-3/4"
Dist. Work Spdl Face to Centerline of Hob Spdl - Maximum 12-3/4"
Dist. Centerline of Work Spdl to Bottom of Overarm - Max. 3.375"
Hob Diameter - Maximum 2-1/16"
Swivel Angle Setting - Maximum 60 Deg. R-90 Deg. L
Hob Spindle - Interchangable Arbor Type
Work Spindle Pilot Diameter 1.750"
Index Worm Speed - Maximum 1800 RPM
Main Drive Motor 2 HP, 1200 RPM
Approximate Dimensions 65.5"Lx46.5"Wx57"H

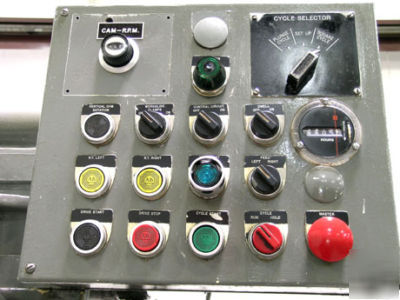

Square Cycle, Plunge Cycle, Hob Shift Selector Switches
