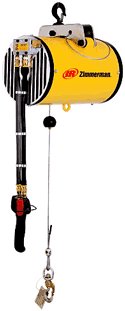

Ingersoll rand balancer zimmerman series / winch hoist
Balancer Advantage Precise, strain-free positioning Float leaves both hands free to raise, lower, or shift the load with virtually no resistance. No more hoist control hit-and-miss spotting.
Simple adjustment Clear access to air-flow calibration controls allows quick, easy adjustment of the float.
Low air consumption Approximately 1/8 cfm required per cycle (50 times less than an air hoist), means very low energy costs.
Clean, oil-free operation Pre-lubricated design Eliminates air line lubrication and oil mist exhaust. It s ideal for food processing and clean manufacturing environments.
Rugged reliability for continuous duty with minimal maintenance, the Balance Air delivers cost effective performance.
Safety is Standard, Built-in overload protection The load being lifted can never exceed the unit s maximum rated capacity for a given air pressure. Maximum capacity is rated at 100 psi and actual capacity is linearly proportional to actual pressure. For example, at 70 psig the unit can only lift up to 70% of its maximum capacity.
Minimal cable recoil due to loss of load If the load is accidentally lost, a spring-loaded centrifugal brake (Z brake) automatically stops rapid upward cable travel
