Goweld portable battery wire welder kit 24 - 36 volt

Goweld Portable Battery Wire Welder Kit
Most Versatile Battery-Powered Welder In The Market Place Today!!
Made for the U.S. Military, Finally Released To The Civilian Market.
* Goweld welds aluminum and steel from 1/16 to 1/2" on 24 volts, up to 1" thick on 36 volts
* Welds with standard .023" to .045" solid or flux-core welding wire
* Professional results for large and small jobs
Highly Portable - Go Anywhere, Weld Anywhere!
* 24 volt or 36 volt battery power-rated to 200 amps
* Weld with ease in hard-to reach locations, spaces
* Fast and easy setup saves time and money
* More repairs performed in the field, at the jobsite
* Lower overhead, no transportation headaches
* Computer controlled functions
* Up to 20 minute arc time on two batteries (battery size determines welding duration)
* Can operate as spool gun with CV welder
* UL and CE tested and approved
State-of-the art technology makes Goweld the new welding solution for professional welders, do-it-yourselfers, contractors, car and truck enthusiasts, maintenance and repair specialists, HVAC and heavy equipment technicians, utility workers, and for small and large welding jobs on the farm, at the ranch, off road or at home.
Goweld is the first battery-powered portable welder to feature an on-board computer and propriety software giving welders a new level of sophistication and ease in portable welding. With just two-twelve volt batteries Goweld users can Go Anywhere, Weld Anywhere! It is the most versatile portable welder available today.
* Goweld gives 200 amps. Most consumer welders are limited to 90 - 100 amps.
* Goweld offers 50 percent duty-cycle. Most consumer welders offer about 20 percent.
* Goweld has the capacity to handle 42 volts max input. Typical consumer welders limited to 20 volts.
* Goweld welds aluminum. Others can't as well, due to the on board computer controls.
* Goweld is highly portable. Most others require a power cord / AC power.
* Goweld accommodates welding wire sizes from .023 inch to .0 inch. Most consumer welders limited too one size.
* On-board computer giving the welder more control resulting in more precise welds in all environments.
* Optical encoder for true speed control from zero to 1,100 inches per minute yielding the least speed variance for more consistent welds. Speed adjustment/correction occurs 675 times per second.
* Heavy-duty, high-torque industrial motor.
* Automatic motor overheat protection and battery over-discharge protection.
* Maximum power rating of 42 volts DC and 200+ amps current achieving excellent joint penetration on plate as thick as one inch.

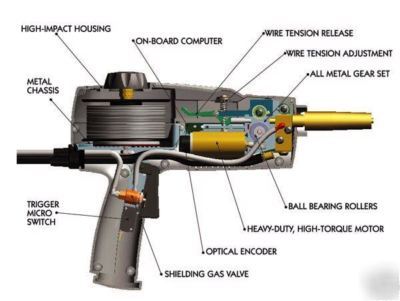

* All metal chassis for strength and support of the motor, drive assembly, trigger micro-switch, gas valve, circuit board and wire spool.
* LEDs to indicate power, polarity, battery charge condition and motor temperature.
* One year warranty on parts and labor, excluding consumables.
* Handle-mounted micro switch and integral gas valve operate directly off the trigger. Ability to pre-flow and post-flow shielding gas.
* Optional Voltage Control Unit (VCU) for welding metal as thin as 24 gauge without burn through.
* Optional Power Conditioning Unit (PCU) for using Goweld as spool gun with conventional welding power sources such as inverter or generator.
* Coming Soon: Optional Alternating Current Unit (ACU) to plug Goweld into standard household current for light welding jobs.
Goweld Professional Portable Battery Welder
200 Amps, 42 VDC (two or three 12 volt batteries),/p>
Mig solid wire, Steel flux core wire, Aluminum wire, Stainless wire, and Hardfacing steel wire.
.023" to .045", cored or solid wire
Goweld's versatility means professional quality welds anywhere for:
PROFESSIONAL WELDERS, HEAVY EQUIPMENT SERVICE TECHNICIANS, UTILITY WORKERS, CONTRACTORS, HVAC TECHNICIANS, MINERS, ORNAMENTAL IRON WORKERS, DO-IT-YOURSELFERS, RANCHERS AND FARMERS, HOT ROD AND OFF ROAD ENTHUSIASTS

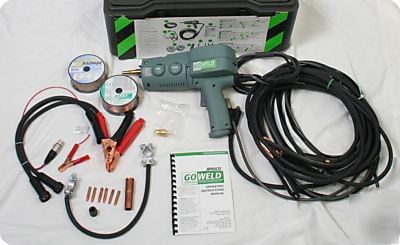

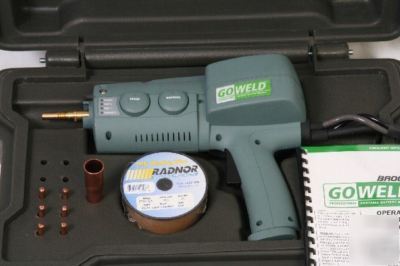

Kit includes all of the following:
* Goweld gun w/20' power cable
* 6 contact tips (3 - .030 & 3 - .035)
BATTERIES ARE NOT INCLUDED WITH THIS KIT
