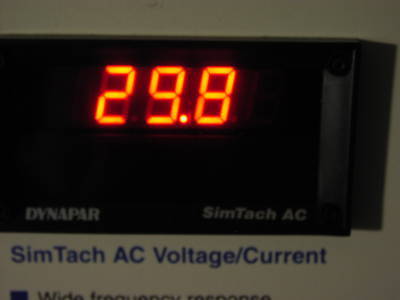

Dynapar dpm 1/8 din simtach volts/amps STCS0 115/230 nw
YOU ARE PURCHASING A NEW DYNAPAR PANEL MOUNTED DIGITAL PANEL METER THAT MONITORS AC VOLTS OR AMPS (SELECTABLE INPUT); THE UNIT HAS THE FOLLOWING SPECIFICATIONS:
(1) PANEL MOUNTING..................1/8DIN CUTOUT(2) SELECT SCALING....DISPLAY ENGRG UNITS(3) LRGE BRIGHT RED LED DISPLAY - .56" HIGH(4) FULL 3-1/2 DIGITRANGE W/SEL DUMMY ZERO(5) SELECTABLE INPUT VOLT OR AMP RANGE(6) SEALED NEMA4FRONT PANEL(7) PROGRAMMABLE DECIMAL POINT(8) SELECT FAST OR SLOW INPUT RESPONSE(9) ACCURACY ...... +/- .1% fs +/- 1 DIGIT(10) VOLTS - 0 TO .2, 2, 20 OR 200V(11) AMPS - 0 TO 2, 20, 200 OR 2000 mA(12) DEC. POINT - NONE, .X, .XX, .XXX, OR .XXXX(13) CALIBRATION - 0 AND FS SPAN ADJUSTABLE(14) POWER - 95-130 OR 190-260 VAC 50/60 hZ 6VA
UNIT IS NEW IN FACTORY PACKAGE& FACTORY MSRP IS $239.00
